Door Lock and Side Window Switch Replacement - Driver Side

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

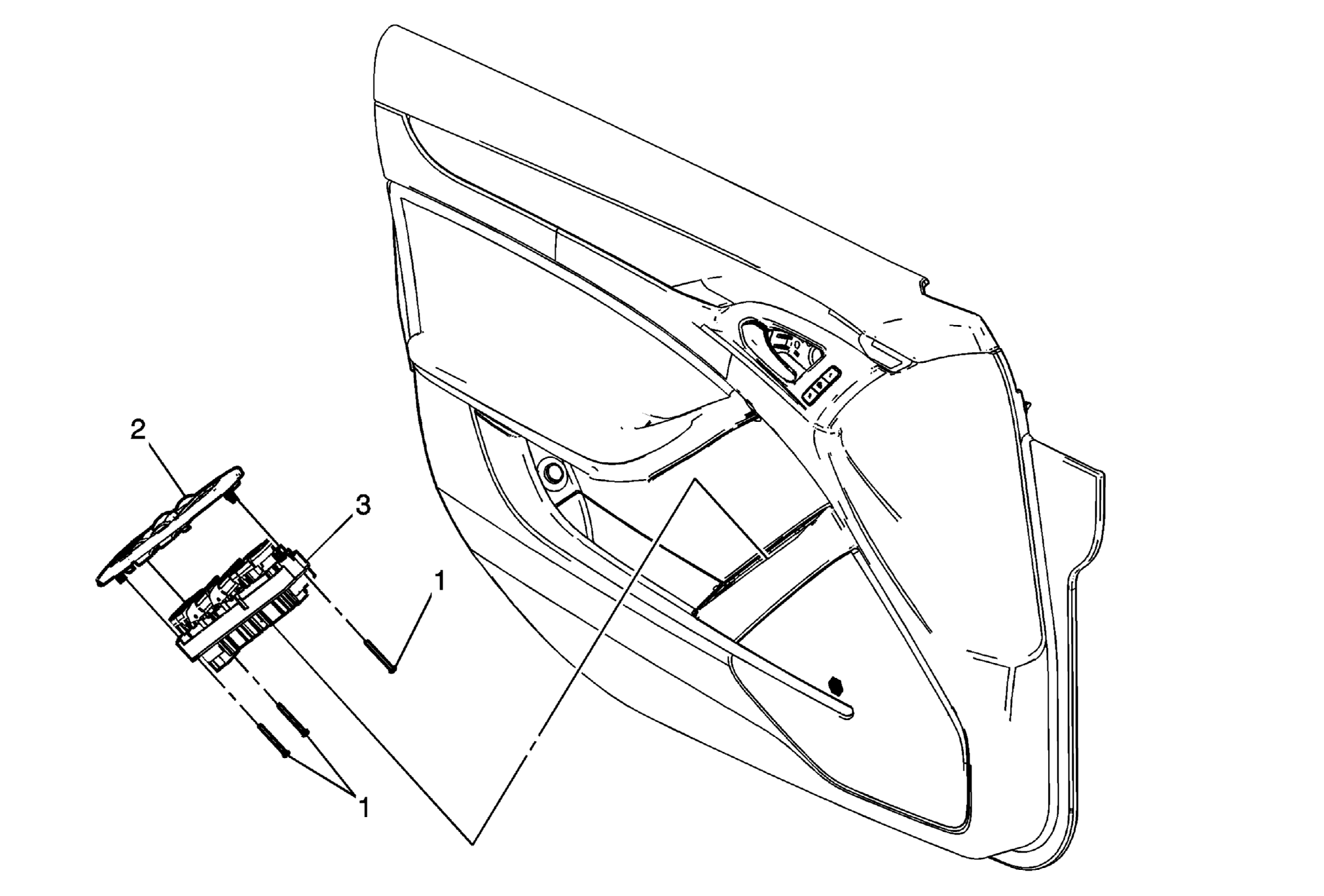

Fig 1: Door Lock and Side Window Switch Replacement - Driver Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the driver door panel trim. Refer to Front Side Door Trim Panel Replacement .
1	Door Lock and Side Window Switch Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Front Side Door Window Switch Bezel Procedure: Push in on the switch bezel integral tabs from the inside of the door trim panel to release the bezel.
3	Door Lock and Side Window Switch Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information.
