Front Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

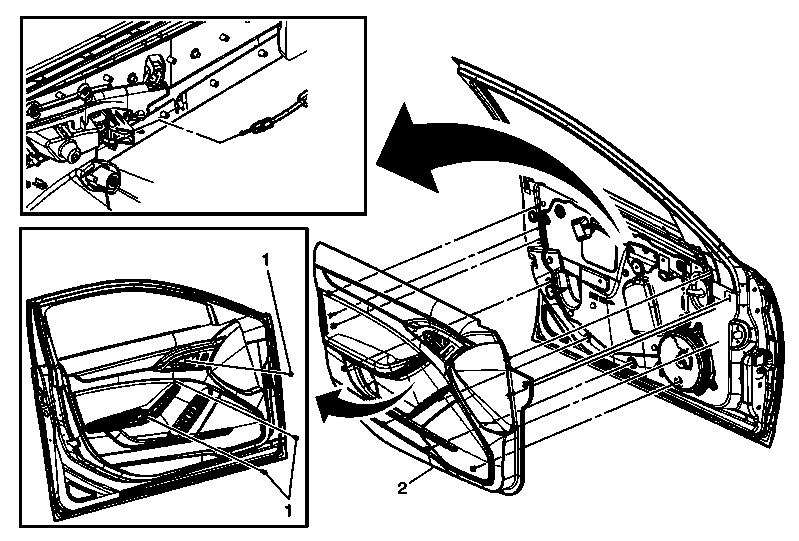

Fig 1: Identifying Front Side Door Trim Panel Assembly
GM1961033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front side door trim panel applique. Refer to Front Side Door Trim Panel Applique Replacement .
1 Front Side Door Trim Panel Screw (Qty: 3)
NOTE: Refer to Fastener Notice .

Tip:  Remove the inside handle bezel to access the screw.

Tighten:  2 N.m (18 lb in)
2 Front Side Door Trim Panel

Procedure

  1. Use a door trim tool or equivalent to aid in the removal of the door trim.
  2. Disconnect the inside handle release cable from the trim panel.
  3. Disconnect the electrical connectors.
