Sunshade Anchor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

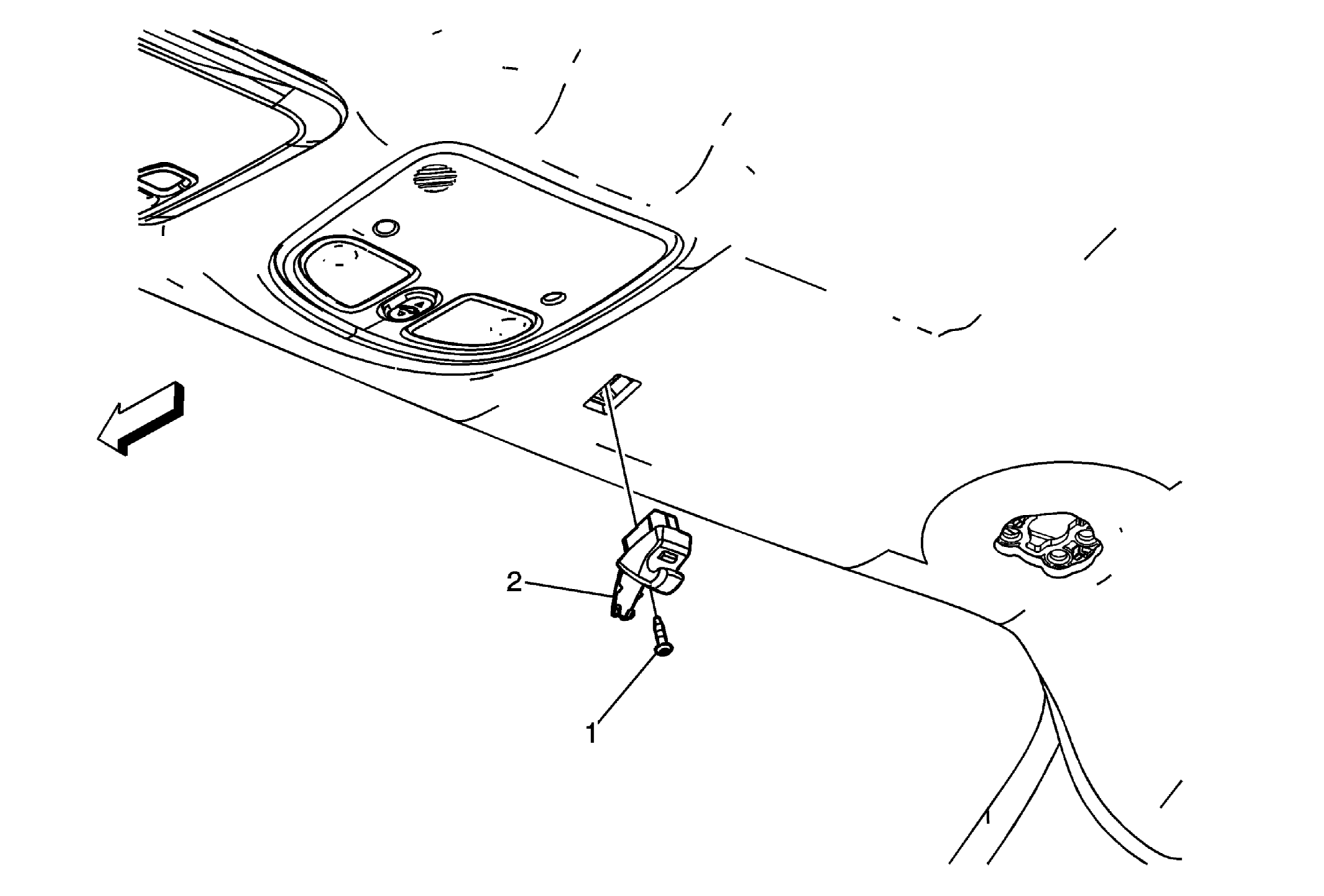

Fig 1: View of Sunshade Anchor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove sunshade assembly. Refer to Sunshade Replacement .
1	Sunshade Anchor Screw NOTE: Refer to Fastener Notice . Tip: Pull the cover downward to access the fastener. Tighten: 3 N.m (25 lb in)
2	Sunshade Anchor Assembly
