Sunshade Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

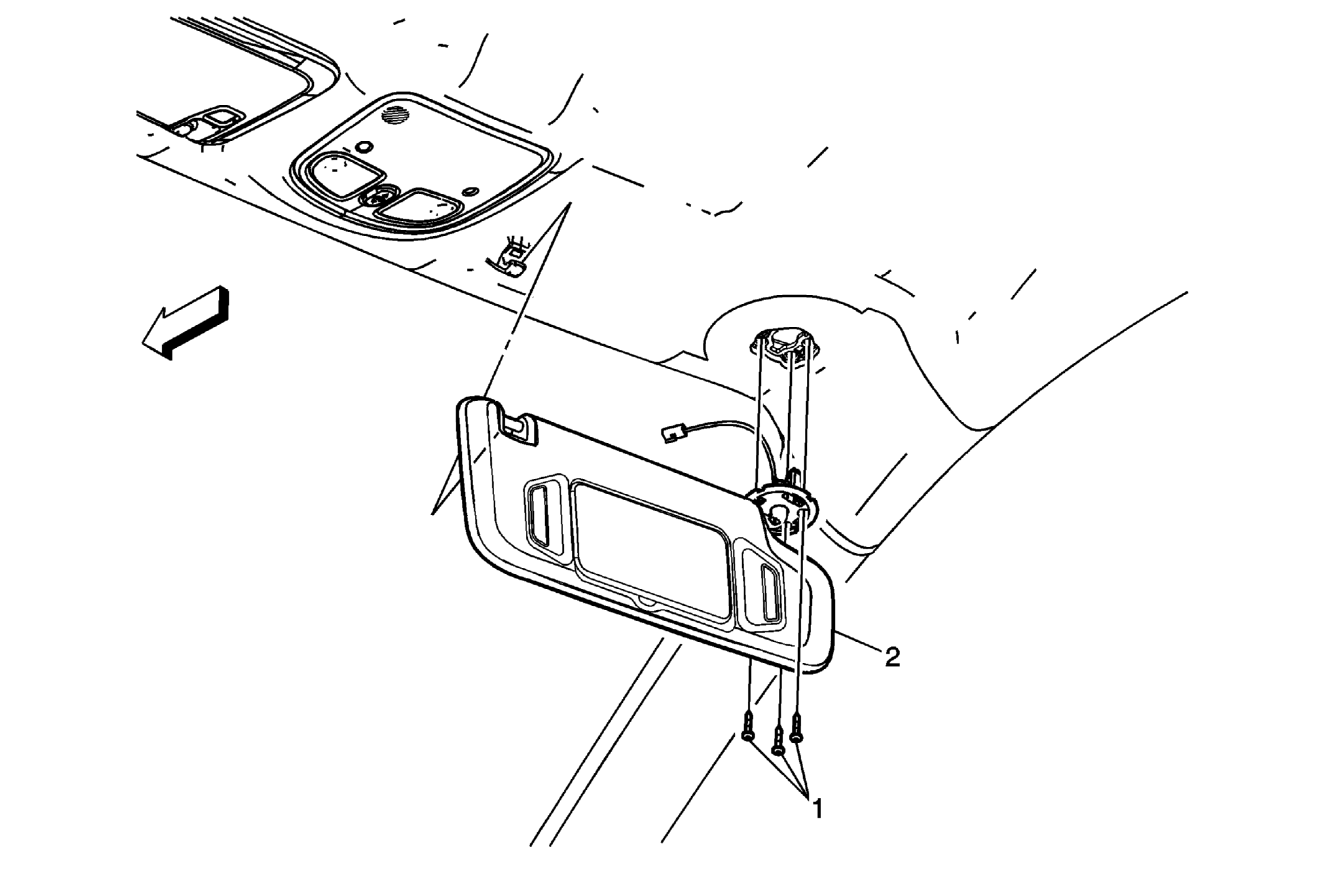

Fig 1: Identifying Sunshade Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tip: The closeout snaps into place. Tighten: 3 N.m (25 lb in)
2	Sunshade Assembly Procedure Squeeze the tabs at the base of the sunshade assembly to remove from the headliner. Disconnect the electrical connector.

Callout

Component Name

Sunshade Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tip: The closeout snaps into place.

Tighten: 3 N.m (25 lb in)

Sunshade Assembly

Procedure

Squeeze the tabs at the base of the sunshade assembly to remove from the headliner.
Disconnect the electrical connector.
