Headlamp and Front Bumper Fascia Mount Panel Replacement

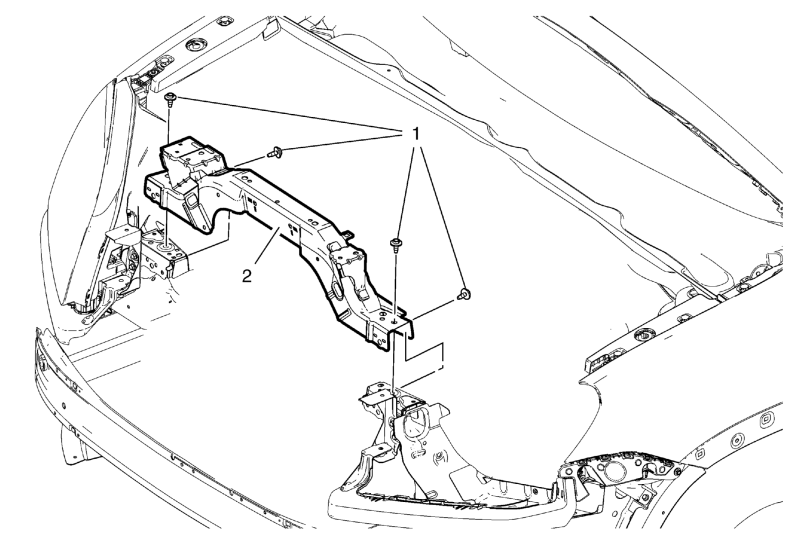

Fig 1: Headlamp And Front Bumper Fascia Mount Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation . Remove the headlamps. Refer to Headlamp Replacement . Remove the hood hold-open rod. Refer to Hood Hold-Open Rod Replacement . Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .
1	Headlamp and Front Bumper Fascia Mount Panel Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Headlamp and Front Bumper Fascia Mount Panel

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation .
Remove the headlamps. Refer to Headlamp Replacement .
Remove the hood hold-open rod. Refer to Hood Hold-Open Rod Replacement .
Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .

Headlamp and Front Bumper Fascia Mount Panel Bolt (Qty: 4)

CAUTION:

Tighten
22 N.m (16 lb ft)

Headlamp and Front Bumper Fascia Mount Panel
