Fuel Tank Filler Pipe Housing Replacement

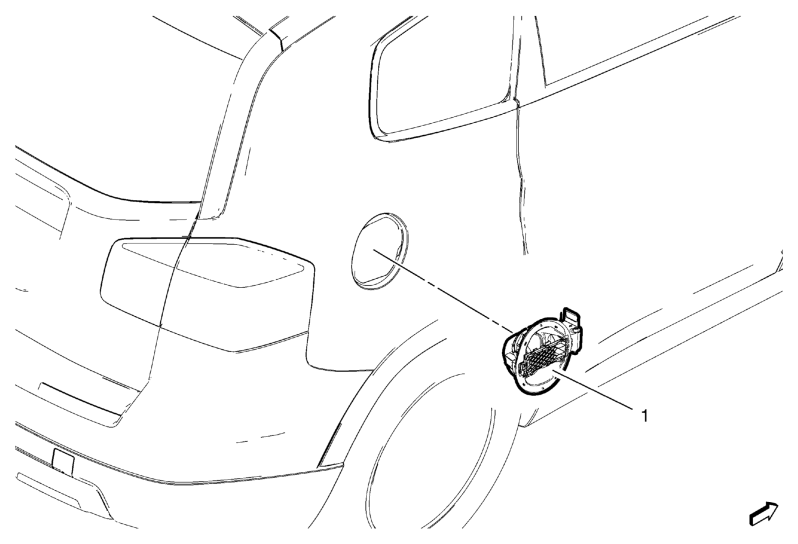

Fig 1: Fuel Tank Filler Pipe Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Fuel Tank Filler Pipe Housing Procedure Disconnect electrical connector from fuel tank filler door lock actuator. Clip out the fuel tank filler pipe housing.

Callout

Component Name

Preliminary Procedures
Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement .

Fuel Tank Filler Pipe Housing

Procedure
