Rear Wheelhouse Panel Liner Replacement
Rear Wheelhouse Panel Liner Replacement

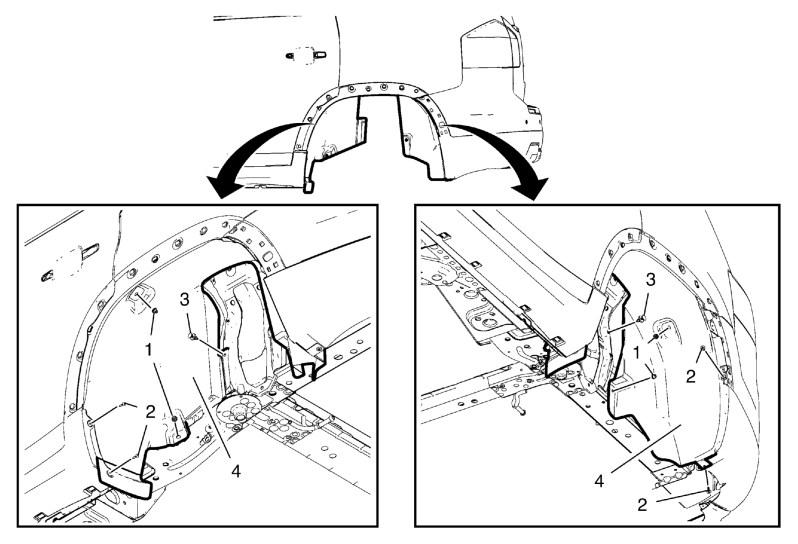

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise the vehicle on a hoist. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Rear Wheelhouse Panel Liner Nuts (Qty: 4) |
| 2 | Rear Wheelhouse Panel Liner Bolts (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 3 | Rear Wheelhouse Panel Liner Retainers (Qty: 2) |
| 4 | Rear Wheelhouse Panel Liner |
