Front Side Door Replacement

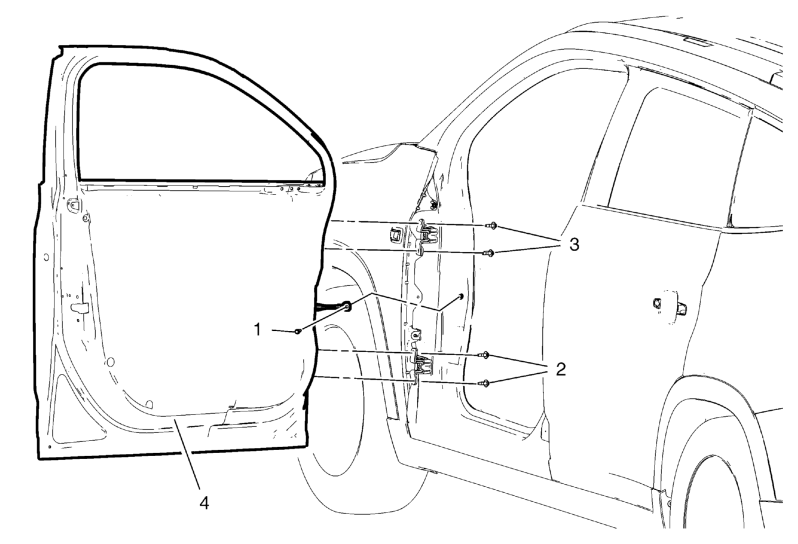

Fig 1: Front Side Door
GM2373499Courtesy of GENERAL MOTORS COMPANY
Front Side Door Replacement

Callout Component Name
Preliminary Procedures
Remove the front side trim. Refer to Front Side Door Trim Replacement .
1 Front Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
  2. Disconnect the door electrical connector.
  3. Support the door before removing the hinge bolts.
  4. With the aid of an assistant, remove the door.

Tighten
22 N.m (18 lb ft)
2 Front Side Door Hinge Bolt (Qty: 2)
Tighten
25 N.m (18 lb ft)
3 Front Side Door Hinge Bolt (Qty: 2)
Tighten
25 N.m (18 lb ft)
4 Front Side Door

Procedure

  1. Transfer all of the internal components.
  2. Adjust the front side door as needed. Refer to Front Side Door Adjustment .
