Body Side Trim Panel Replacement - Left Side

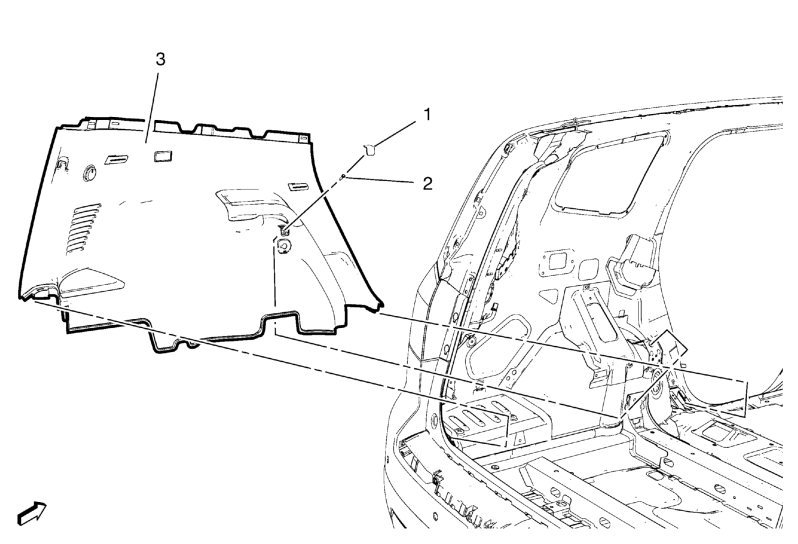

Fig 1: Body Side Trim Panel - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove both cargo tie down hooks. Refer to Cargo Tie Down Hook Replacement . Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement . Remove the rear compartment sill trim plate. Refer to Rear Compartment Sill Trim Plate Replacement . Remove the quarter window garnish molding. Refer to Quarter Window Garnish Molding Replacement .
1	Body Side Trim Panel Bolt Cover
2	Body Side Trim Panel Bolt CAUTION: Refer to Fastener Caution .
3	Body Side Trim Panel - Left Side Procedure Disconnect electrical connection.
