Heater and Air Conditioning Remote Control Replacement

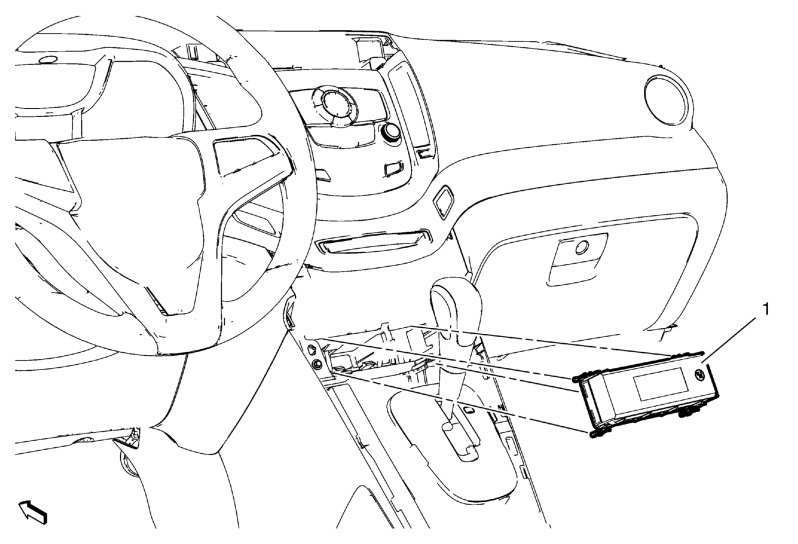

Fig 1: Heater & Air Conditioning Remote Control
GM2372965Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Remote Control Replacement

Callout Component Name

Preliminary Procedures

  1. Prepare heater and air conditioning remote control for replacement, refer to Control Module References .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System)
  3. Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement .
1 Heater and Air Conditioning Remote Control

Procedure

  1. Disconnect electrical connectors
  2. After repairs, refer to Control Module References for programming and set up procedures.
