Rear Side Door Window Regulator Replacement

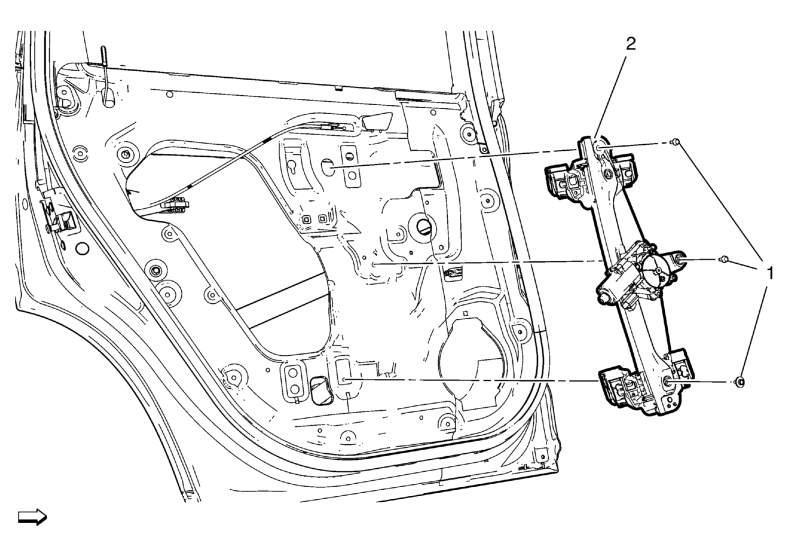

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Regulator Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Regulator Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Rear Side Door Window Regulator
