Rear Side Door Window Replacement

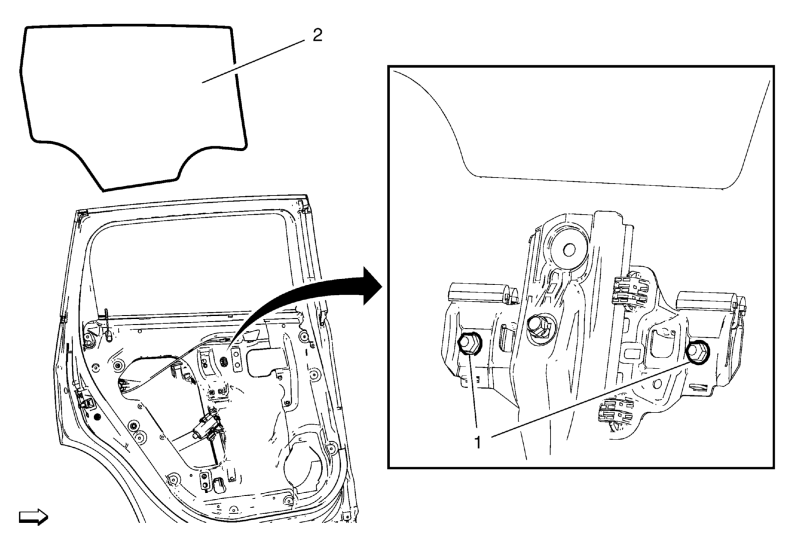

Fig 1: Rear Side Door Window
GM2372627Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Replacement

Callout Component Name

Preliminary Procedure

  1. Position the window approximately half way down in the door.
  2. Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  3. Remove the rear side door outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement .
1 Rear Side Door Window Regulator Sash (Qty: 2).
2 Rear Side Door Window

Procedure

  1. Loosen the window regulator sash nuts, pull upward to release the window from the sash.
  2. Rotate the rear side door window as necessary to remove it from the door.
