Front Floor Rear Console Replacement

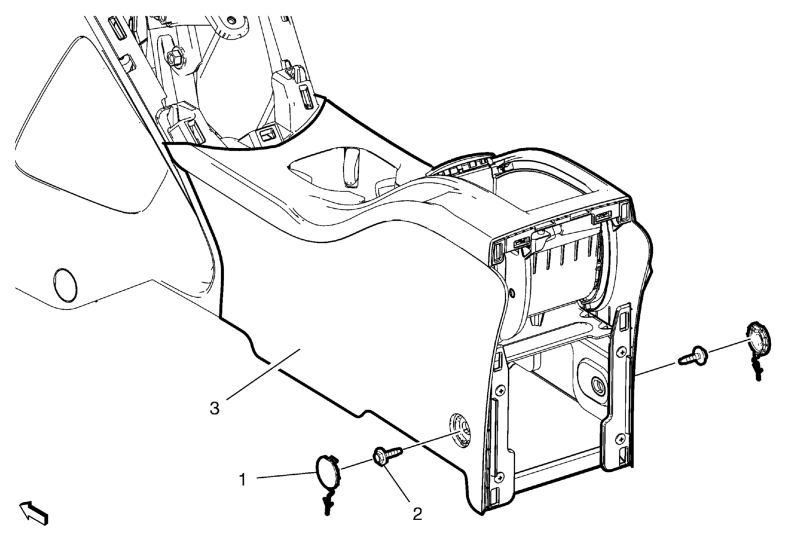

Fig 1: Front Floor Rear Console
GM2373502Courtesy of GENERAL MOTORS COMPANY
Front Floor Rear Console Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement .
  2. Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .
1 Front Floor Rear Console Fastener Cover (Qty: 2)
2 Front Floor Rear Console Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
3 Front Floor Rear Console
