Front Floor Front Console Replacement

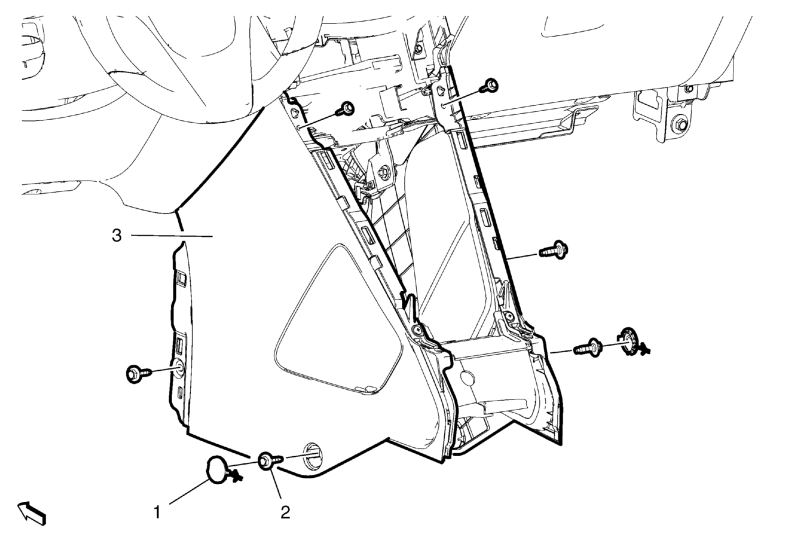

Fig 1: Front Floor Front Console
GM2373489Courtesy of GENERAL MOTORS COMPANY
Front Floor Front Console Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel lower extension side trim panels. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement .
  2. Remove the front floor rear console. Refer to Front Floor Rear Console Replacement .
1 Front Floor Front Console Fastener Cover (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Front Floor Front Console Fastener (Qty: 6)
3 Front Floor Front Console
