Front Fender Replacement

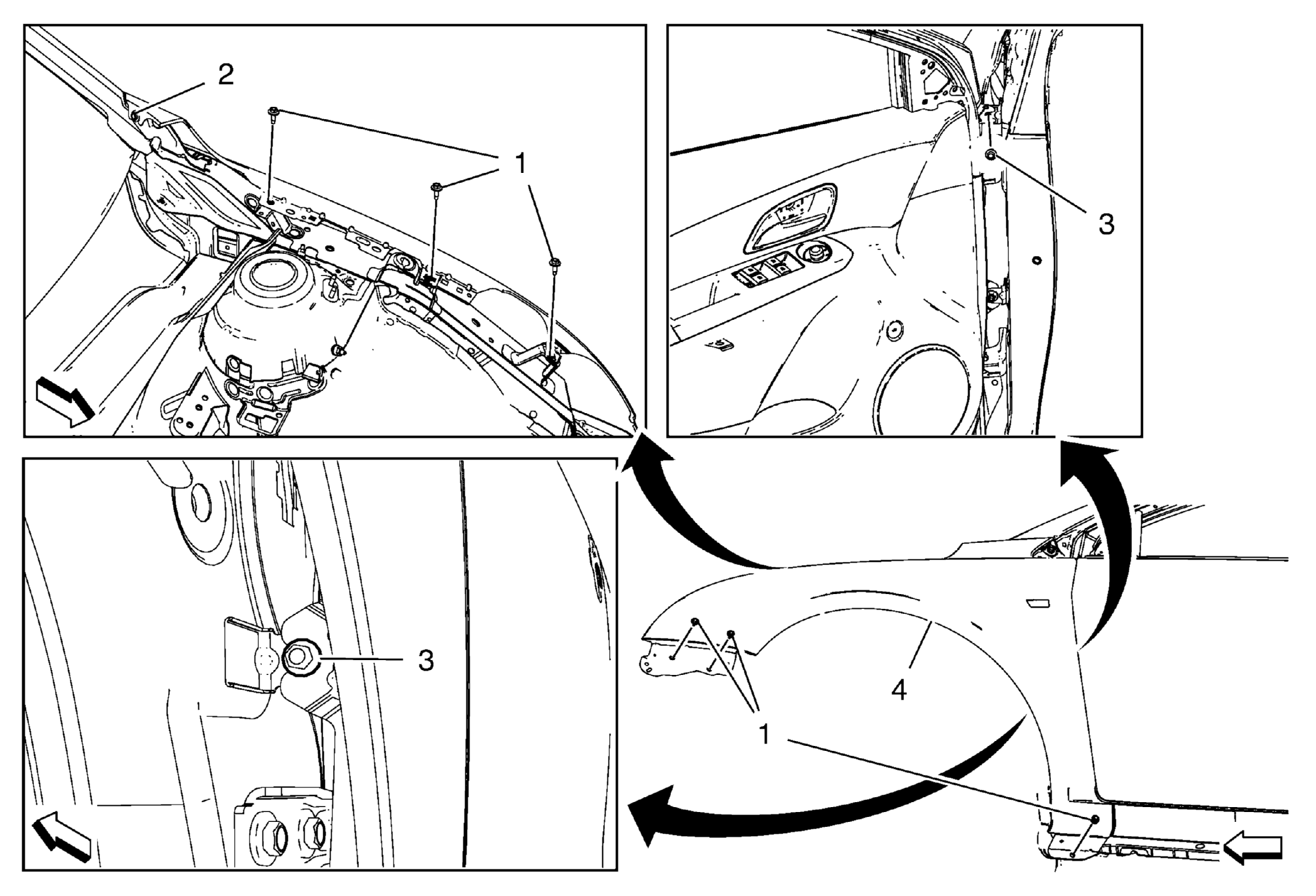

Fig 1: Front Fender Mounting Hardware

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Remove front bumper fascia guide. Refer to Front Bumper Fascia Replacement Remove the wheelhouse liner. Refer to Front Wheelhouse Liner Replacement Remove the headlamp. Refer to Headlamp Replacement Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement Remove the front fender shipping cover. Refer to Front Fender Shipping Cover Replacement Remove the front fender insulator. Refer to Front Fender Insulator Replacement
1	Front Fender Bolt (Qty: 7) CAUTION: Refer to Fastener Caution Tighten 8 N.m (70 lb in)
2	Front Fender Bolt Tighten 8 N.m (70 lb in)
3	Front Fender Bolt TIP: Simply loosen the bolt rather than remove. Tighten 8 N.m(70 lb in)
4	Front Fender
