Headlamp Replacement

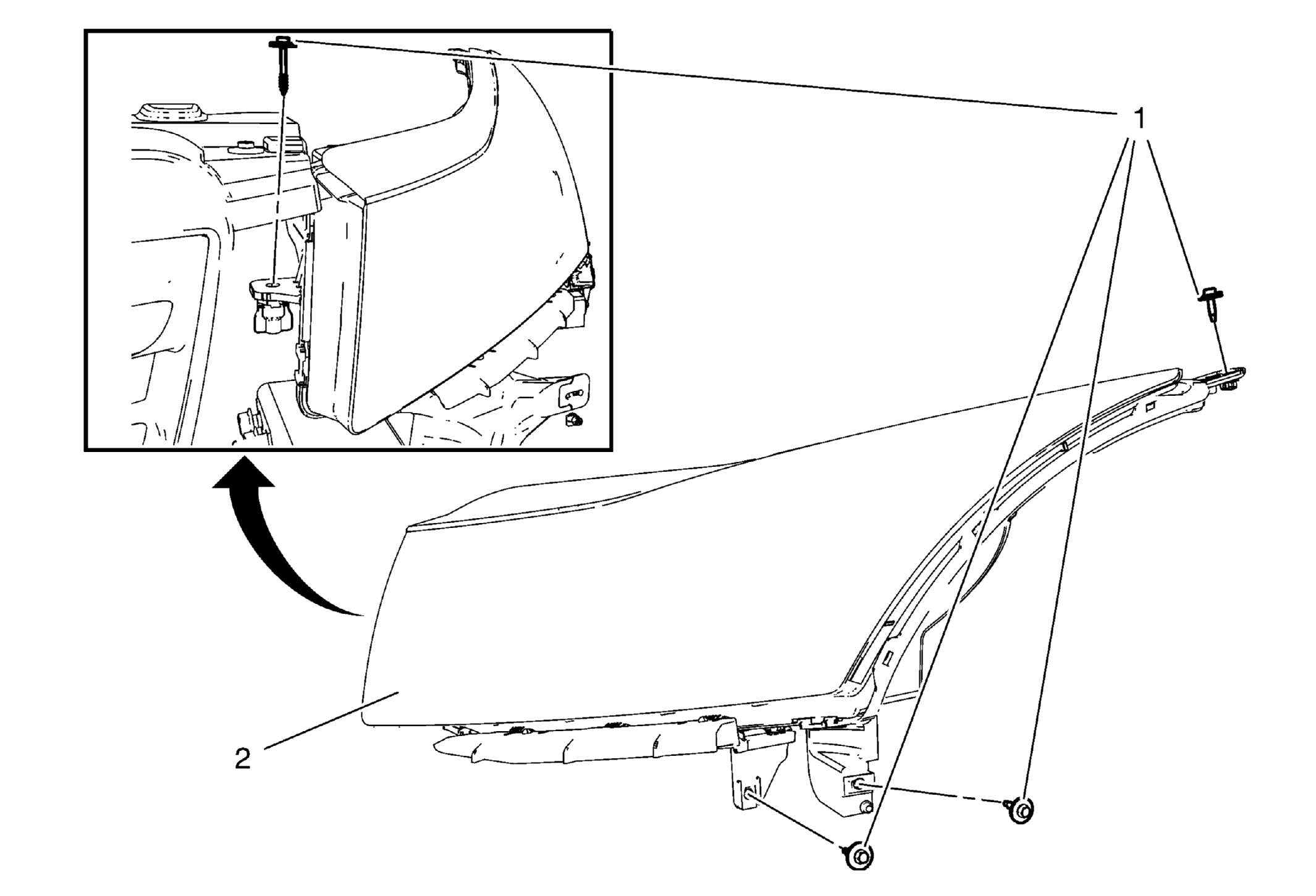

Fig 1: Headlamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia guide. Refer to Front Bumper Fascia Guide Replacement .
1	Headlamp Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Secure the headlamp fasteners in sequence, as indicated. Tighten 2.5 N.m (22 lb in)
2	Headlamp Assembly Procedure Pull forward on the outside edge of the headlamp in order to release the up and down locator tabs on the backside of the headlamp. Pull forward on the top inside edge of the headlamp to release the inboard up/down locator. Pull the headlamp assembly down. Pull the headlamp assembly forward far enough to access the electrical connection. Disconnect the headlamp electrical connector from the forward lamp harness connector. Remove the headlamp assembly. Aim the headlamps after installation. Refer to Headlamp Aiming .

Callout

Component Name

Preliminary Procedures
Remove the front bumper fascia guide. Refer to Front Bumper Fascia Guide Replacement .

Headlamp Screw (Qty: 4)

CAUTION:

Procedure
Secure the headlamp fasteners in sequence, as indicated.
Tighten
2.5 N.m (22 lb in)

Headlamp Assembly

Procedure

Pull forward on the outside edge of the headlamp in order to release the up and down locator tabs on the backside of the headlamp.
Pull forward on the top inside edge of the headlamp to release the inboard up/down locator.
Pull the headlamp assembly down.
Pull the headlamp assembly forward far enough to access the electrical connection.
Disconnect the headlamp electrical connector from the forward lamp harness connector.
Remove the headlamp assembly.
Aim the headlamps after installation. Refer to Headlamp Aiming .
