Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
    2. Fig 1: Supporting Engine/Transmission With Hydraulic Floor Jack
    GM851552Courtesy of GENERAL MOTORS CORP.
  2. Support the engine with a hydraulic floor jack. Use a piece of wood between the jack and the oil pan.

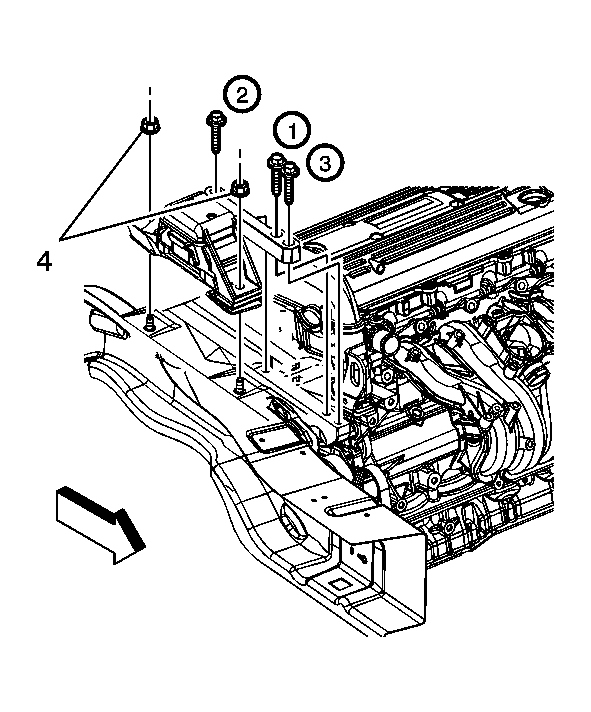

    3. Fig 2: Identifying Engine Mount To Intermediate Bracket Bolts
    GM1546774Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount to intermediate bracket bolts.
  4. Remove the engine mount to midrail nuts (4).
  5. Remove the engine mount from the engine compartment.
