Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Battery Connections
    GM1656237Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
    • Always route the replacement cable the same way as the original cable.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Relocate the carpet, but do not remove the console. Refer to Floor Panel Carpet Replacement .
  3. Open the positive battery cable (1) cover.
  4. Loosen the positive battery cable nut.
  5. Remove the positive battery cable from the battery.
  6. Disconnect the positive battery cable electrical connector (9) from the body harness electrical connector (8).
    7. Fig 2: Battery Cable Clip To Floor Pan
    GM1548552Courtesy of GENERAL MOTORS CORP.
  7. From inside the vehicle, remove the positive battery cable clips (1) from the weld studs.
  8. Remove the positive battery cable clip (2) from the floor pan.

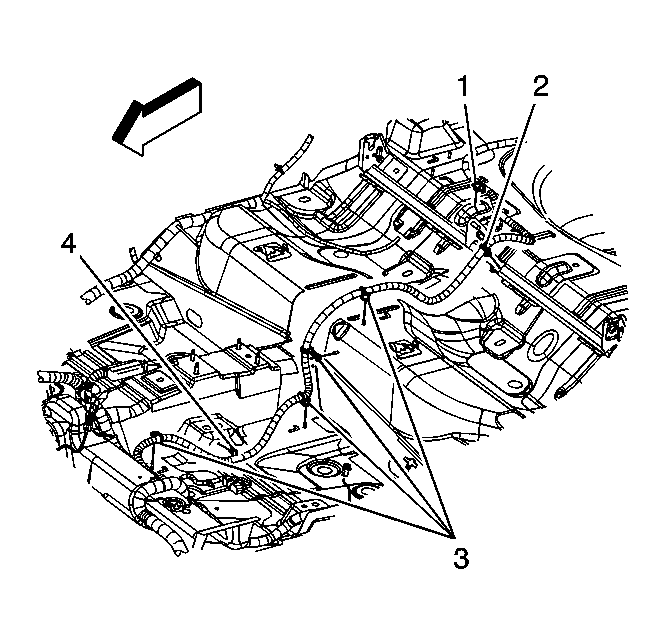

    9. Fig 3: View Of Positive Battery Cable Clip To Floor Pan
    GM1656242Courtesy of GENERAL MOTORS CORP.
  9. Remove the positive battery cable clip (2) from the latch bar.
  10. Remove the positive battery cable from the body clip (3). Unfold the tabs in order to remove the cable.
  11. Remove the positive battery cable clips (3) from the weld studs.
  12. Remove the positive battery cable clip (4) from the floor pan.

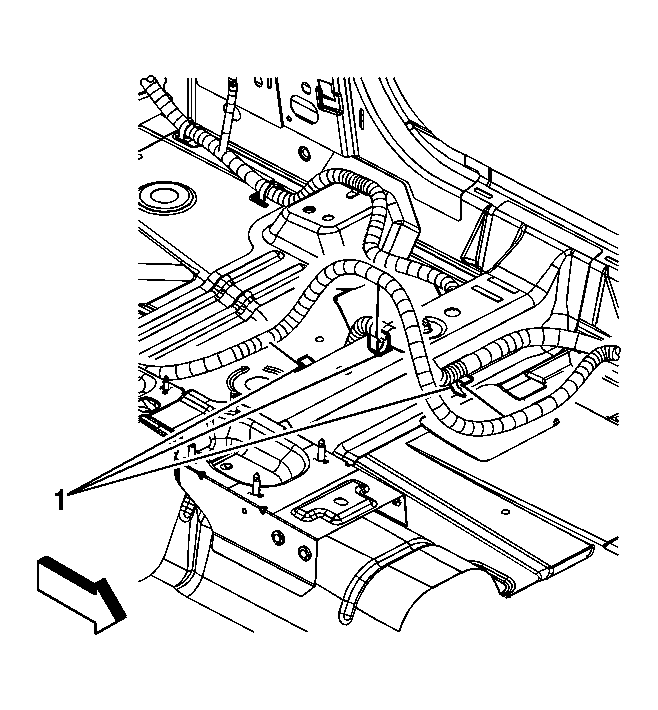

    13. Fig 4: View Of Positive Battery Cable To Body Wiring Harness Clips
    GM1650320Courtesy of GENERAL MOTORS CORP.
  13. Remove the positive battery cable from the body wiring harness clips (1).

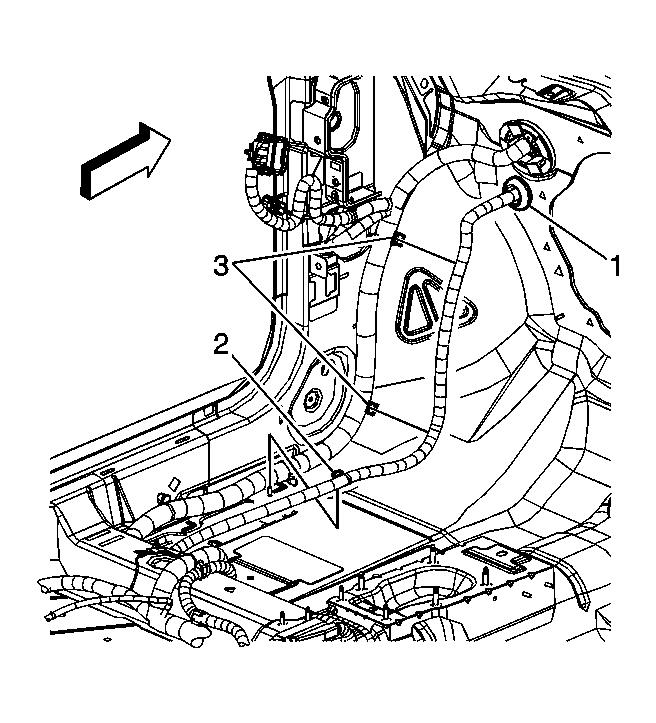

    14. Fig 5: View Of Positive Battery Cable Clip To Weld Stud
    GM1656243Courtesy of GENERAL MOTORS CORP.
  14. Remove the positive battery cable clip (2) from the weld stud.
  15. Remove the positive battery cable from the body wiring harness clips (3).
  16. Unseat the grommet (1) from the front of dash.

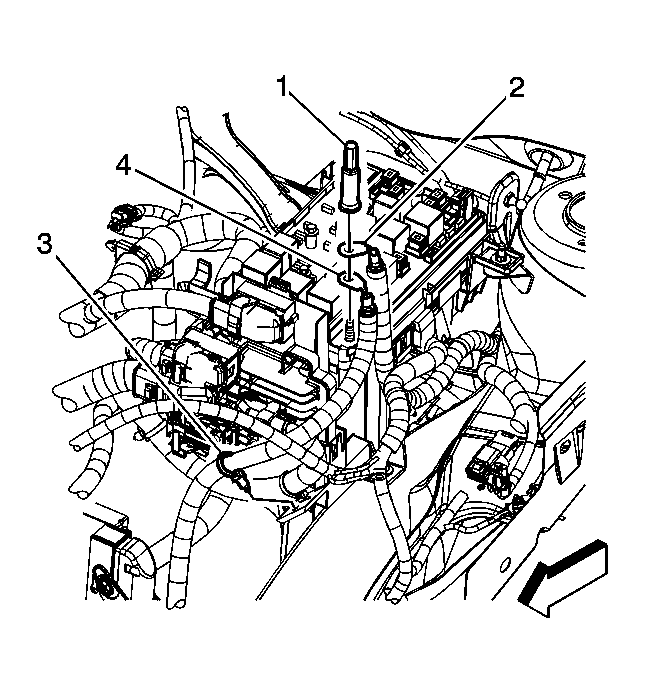

    17. Fig 6: View Of Junction Block Cover
    GM1656241Courtesy of GENERAL MOTORS CORP.
  17. From under the hood, remove the junction block cover.
  18. Remove the junction block nut (1).
  19. Remove the positive battery cable (to starter) terminal (2) from the stud.

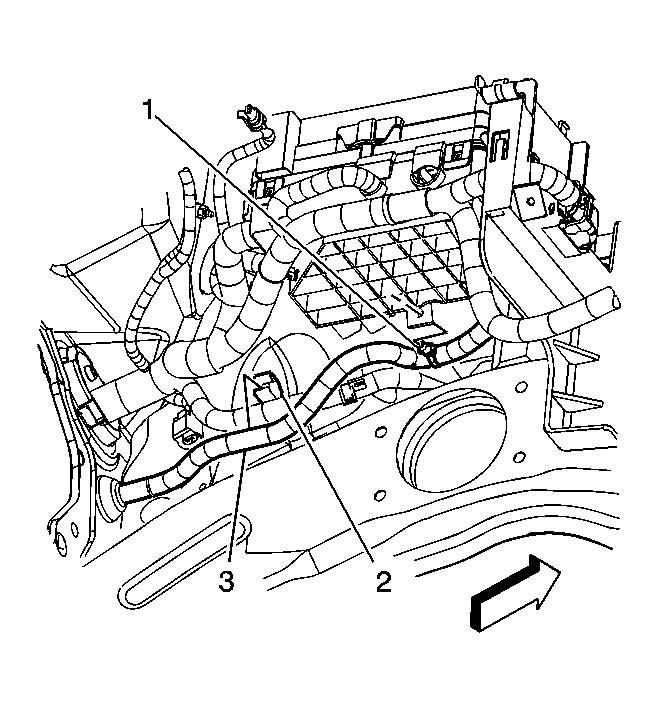

    20. Fig 7: View Of Battery Cable Assembly
    GM1656244Courtesy of GENERAL MOTORS CORP.
  20. Remove the positive battery cable (3) from the body wiring harness clip (2).
  21. Remove the positive battery cable clip (1) from the junction block.
  22. Remove the positive battery cable from under the junction block.
  23. Route the positive battery cable through the hole in the front of dash.
  24. From inside the vehicle, remove the positive battery cable.
