High Mount Stop Lamp Bulb Replacement (Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

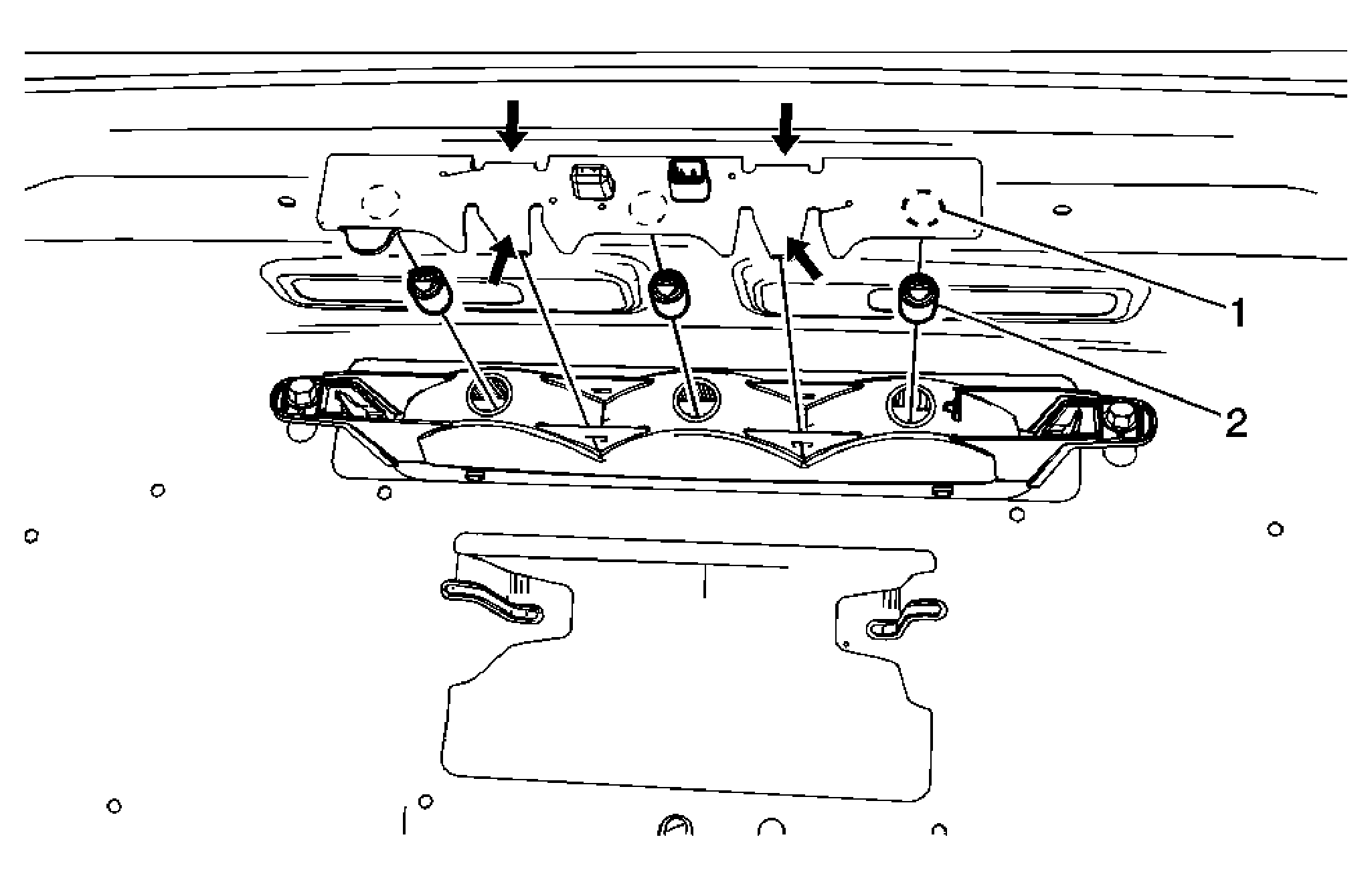

Fig 1: Locating High Mount Stop Lamp Bulb (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	High Mount Stop Lamp Bulb Connector Tip: Pinch the four tabs on the high mount stop lamp bulb connector and remove the connector from the high mount stop lamp.
2	High Mount Stop Lamp Bulb (Qty: 3)
