Rear Compartment Lid Inner Panel Trim Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

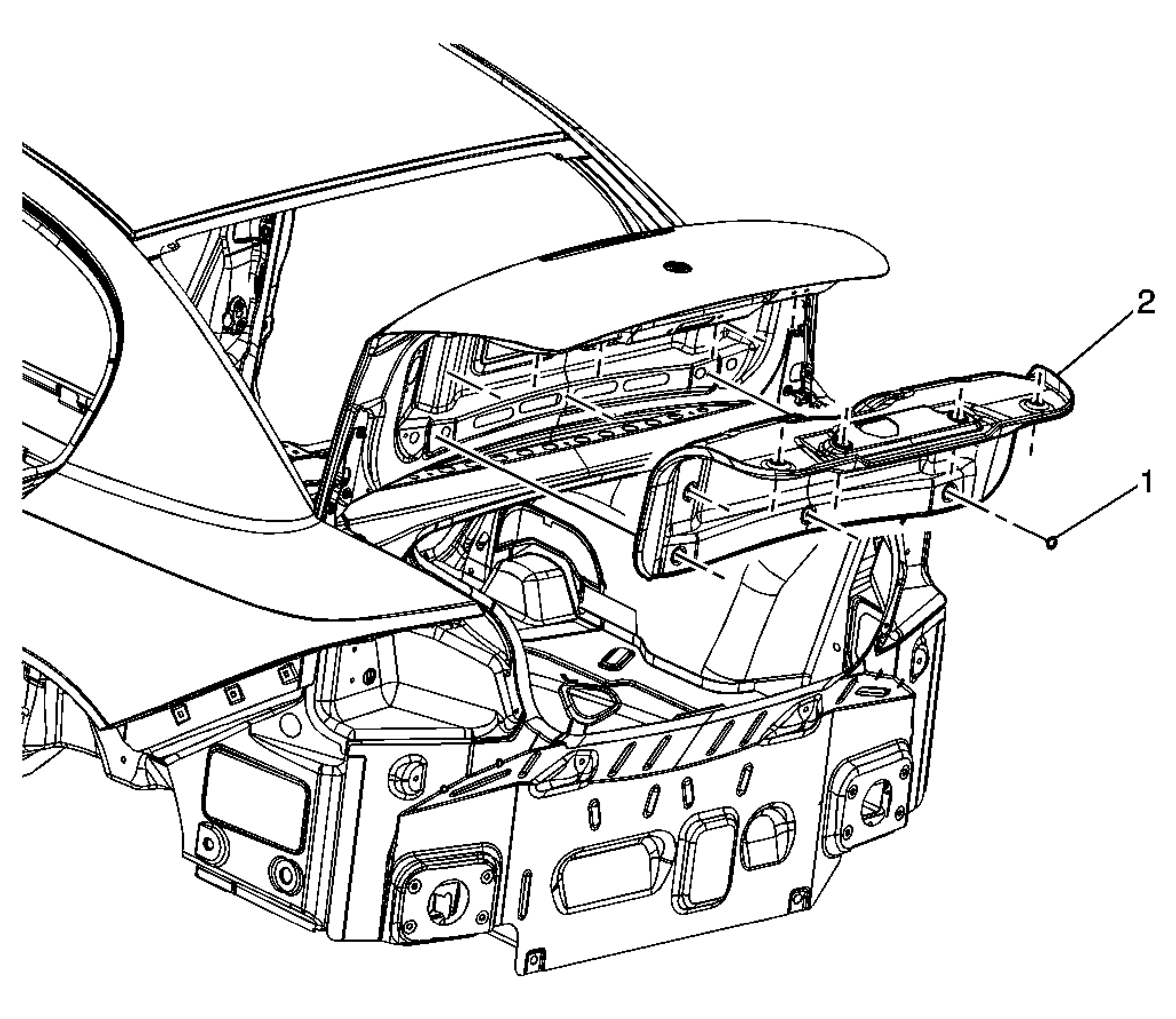

Fig 1: View Of Rear Compartment Lid Inner Panel Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Inner Panel Trim Retainer (Qty: 9) Tip: Use a J 38778 to aid in the removal of the door trim panel. Special Tools: J 38778 Door Trim Pad Clip Remover
2	Rear Compartment Lid Inner Panel Trim
