Backup Lamp Replacement (Chevrolet Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

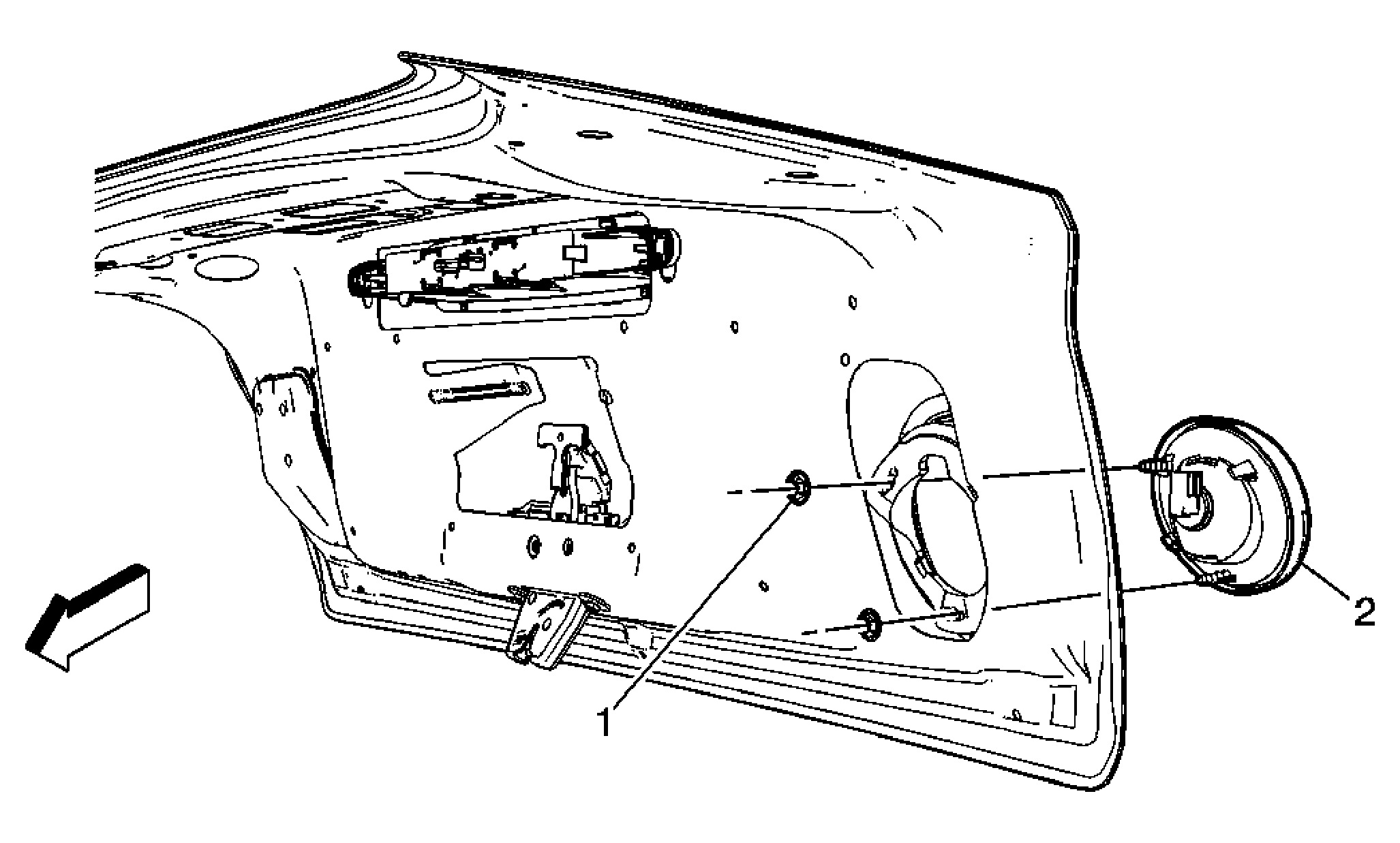

Fig 1: Identifying Backup Lamp (Chevrolet Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Back Up Lamp Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
2	Back Up Lamp Assembly Procedure Disconnect the electrical connector from the lamp socket. Disengage the two lamp clips from the lamp pocket. Push the lamp assembly outward, away from the rear compartment lid. Replace or transfer the lamp socket and bulb as needed.

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Back Up Lamp Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (13 lb in)

Back Up Lamp Assembly

Procedure

Disconnect the electrical connector from the lamp socket.
Disengage the two lamp clips from the lamp pocket.
Push the lamp assembly outward, away from the rear compartment lid.
Replace or transfer the lamp socket and bulb as needed.
