Rear Side Door Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

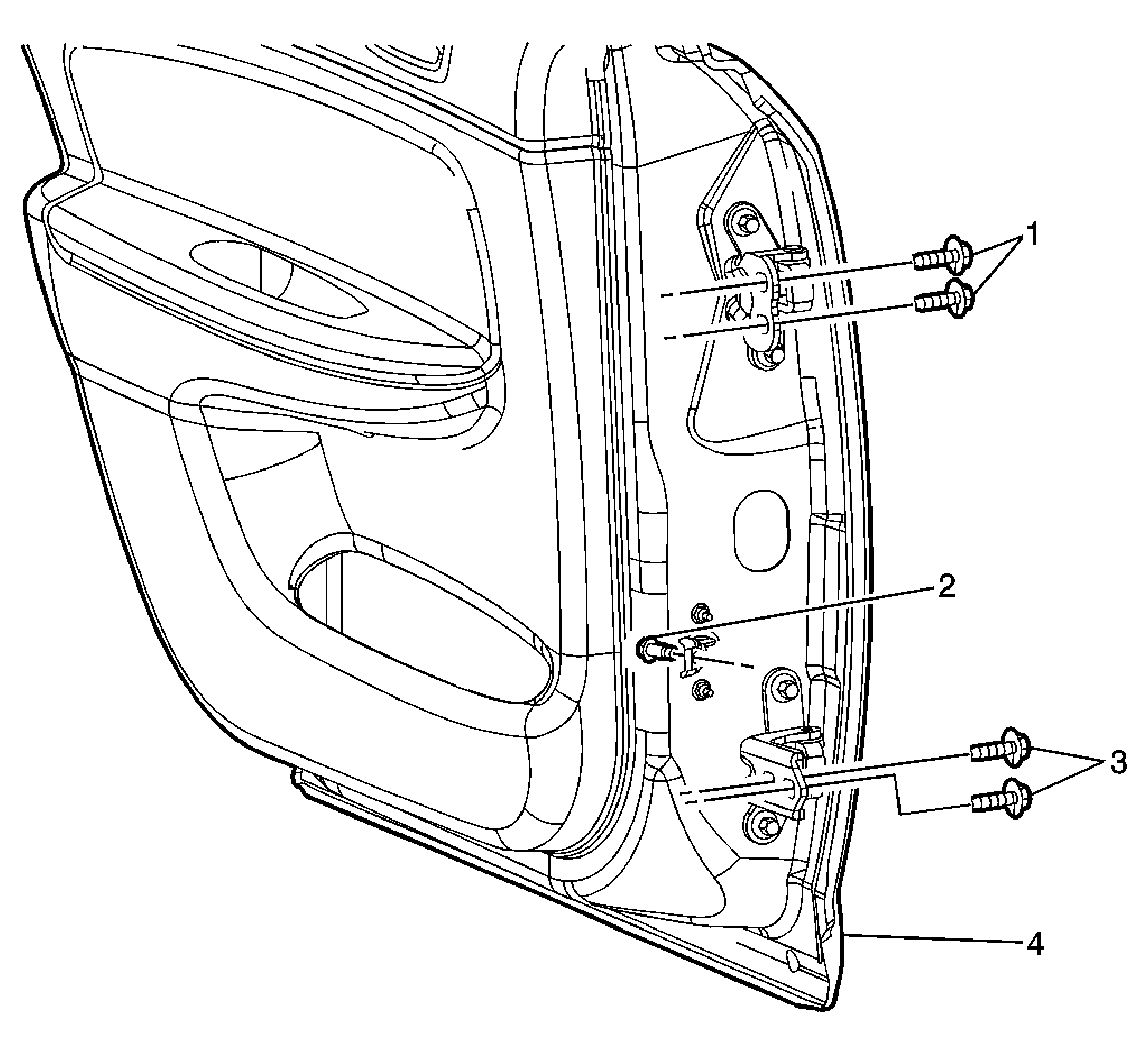

Fig 1: View Of Rear Side Door Hinges & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Hinge Upper Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector. Support the door before removing the hinge bolts. Disconnect the electrical connector, if equipped. With the aid of an assistant, remove the door. Tighten: 35 N.m (26 lb ft)
2	Rear Side Door Check Link Bolt Tighten: 20 N.m (15 lb ft)
3	Rear Side Door Hinge Lower Bolt (Qty: 2) Tighten: 35 N.m (26 lb ft)
4	Rear Side Door Assembly Procedure: When replacing the door it is necessary to transfer all of the internal components.
