Rear Seat Buckle Side Belt Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

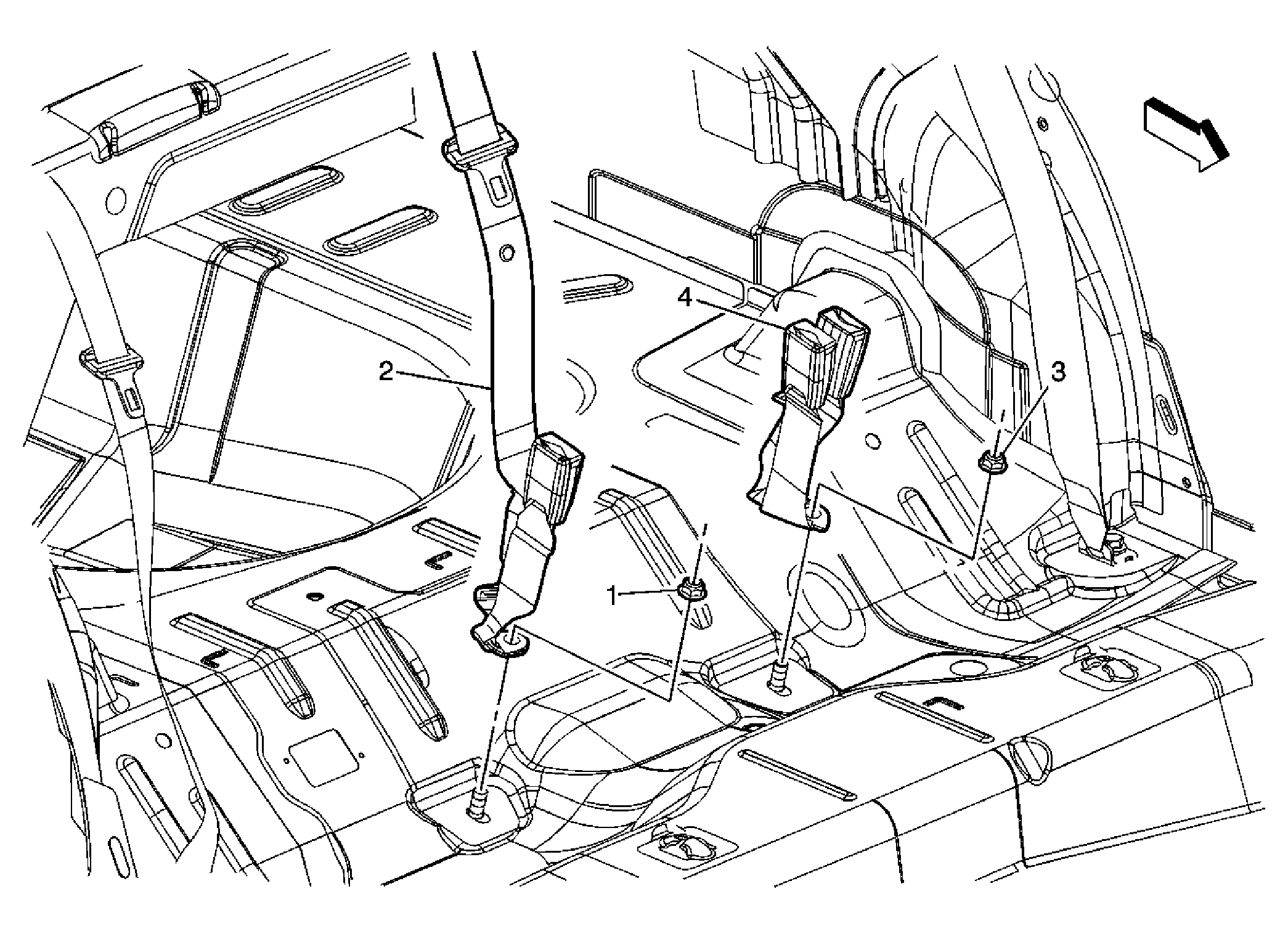

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . |
|
| 1 | Rear Seat Belt Buckle Nut- Right
CAUTION:
Refer to Fastener Caution
.
Tighten: 45 N.m (33 lb ft) |
| 2 | Rear Seat Belt buckle Assembly - Right |
| 3 | Rear Seat Belt Buckle Nut - Center and Left Tighten: 45 N.m (33 lb ft) |
| 4 | Rear Seat Belt Buckle Assembly - Center and Left |
