Driver or Passenger Seat Belt Buckle Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

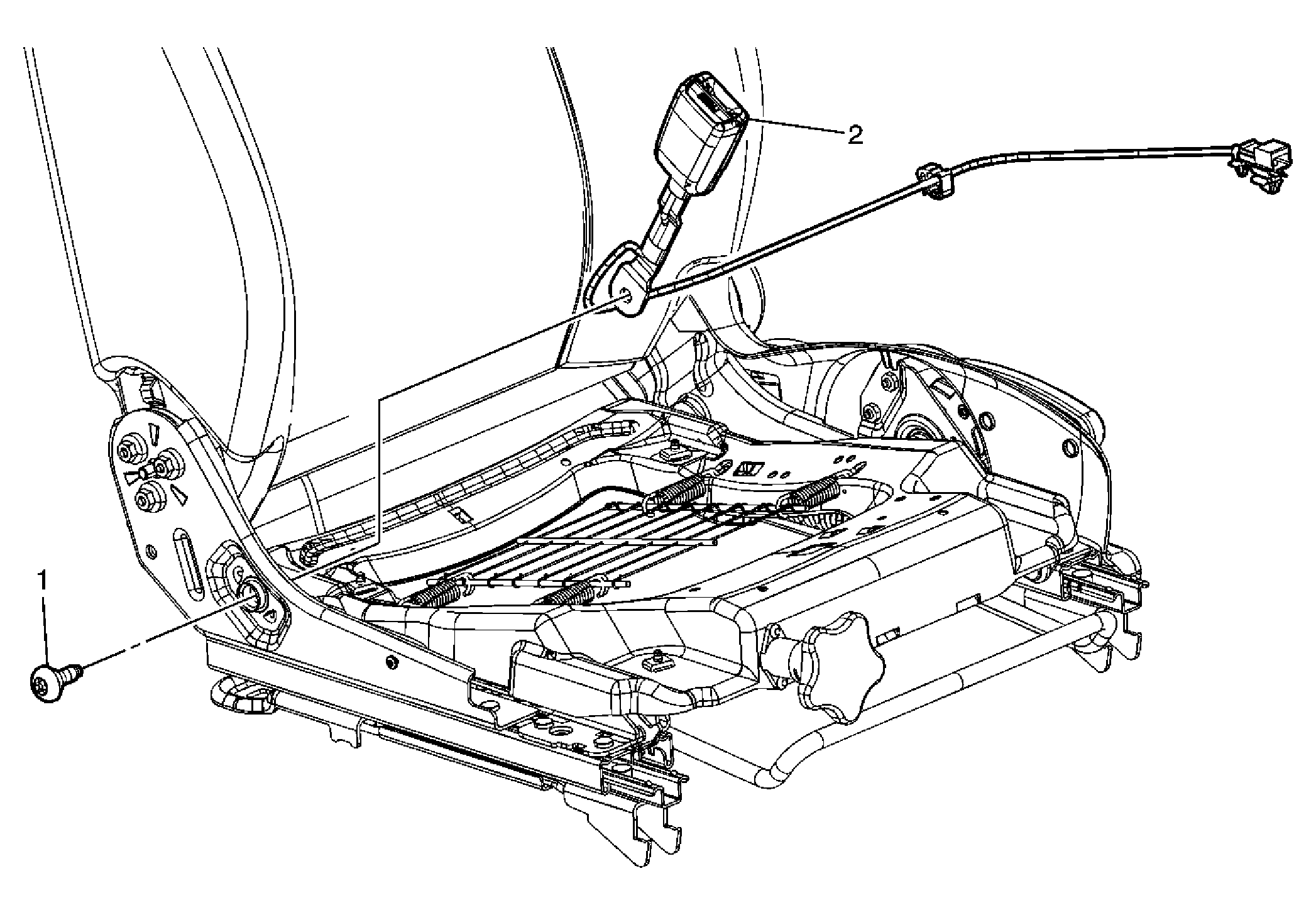

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the seat cushion inner trim panel. Refer to Seat Cushion Inner Trim Panel Replacement .
1	Seat Belt Buckle Bolt CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Seat Belt Buckle Assembly Tip: The seat wire harness is routed under the seat frame assembly and can be accessed from the rear of the seat.

Callout

Component Name

Preliminary Procedures

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the seat cushion inner trim panel. Refer to Seat Cushion Inner Trim Panel Replacement .

Seat Belt Buckle Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 45 N.m (33 lb ft)

Seat Belt Buckle Assembly
Tip: The seat wire harness is routed under the seat frame assembly and can be accessed from the rear of the seat.
