Front Side Door Window Regulator Replacement (Manual Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

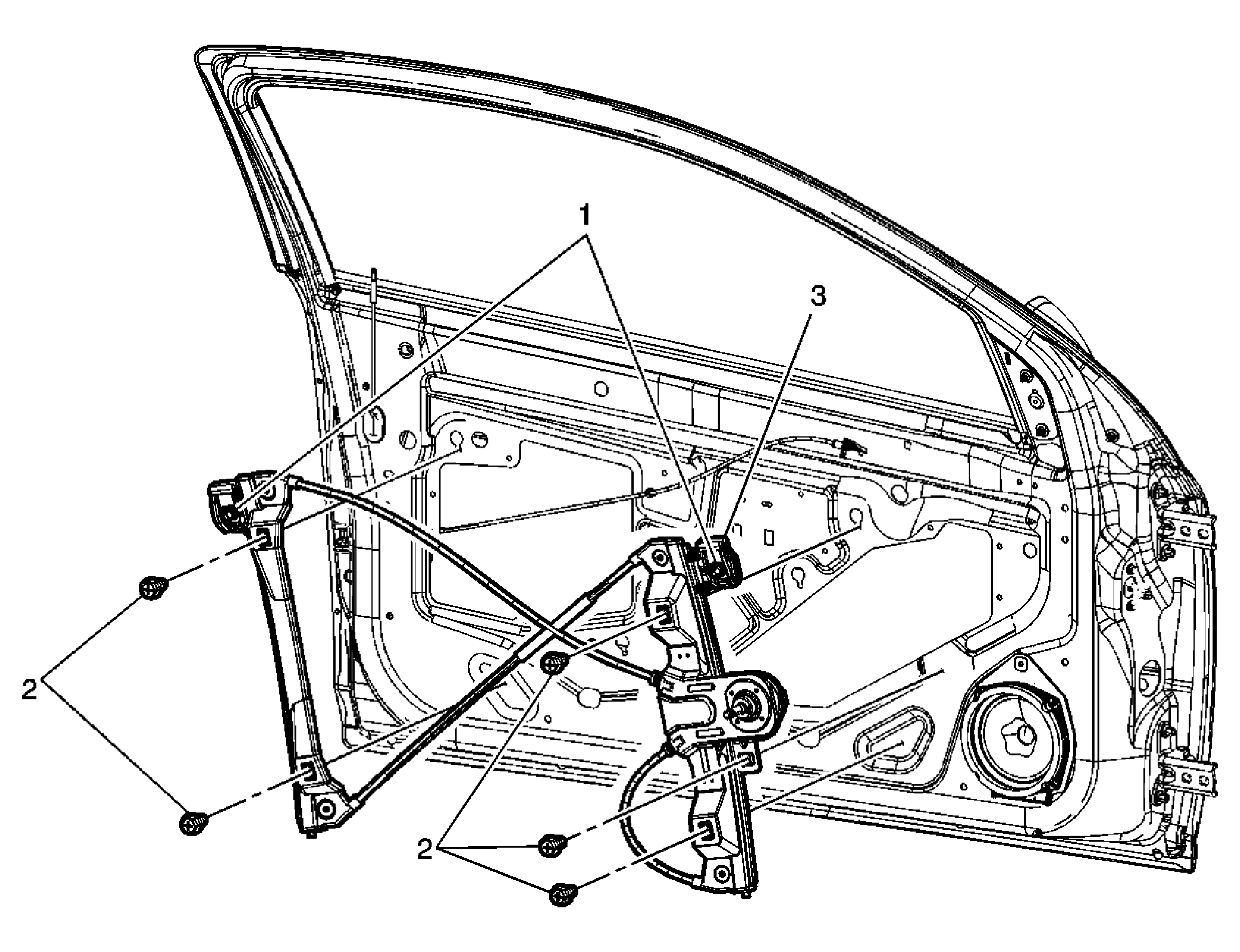

Fig 1: Front Side Door Window Regulator (Manual Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Window Regulator Nut CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Side Door Window Regulator Bolt (Qty: 5) Procedures Place the window in the full up position. Tape the window to the door upper door frame. Disconnect the electrical connector. Tighten: 10 N.m (89 lb in)
3	Front Side Door Window Regulator Procedure: Inspect the window for proper operation before installing the door trim panel.
