Front Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

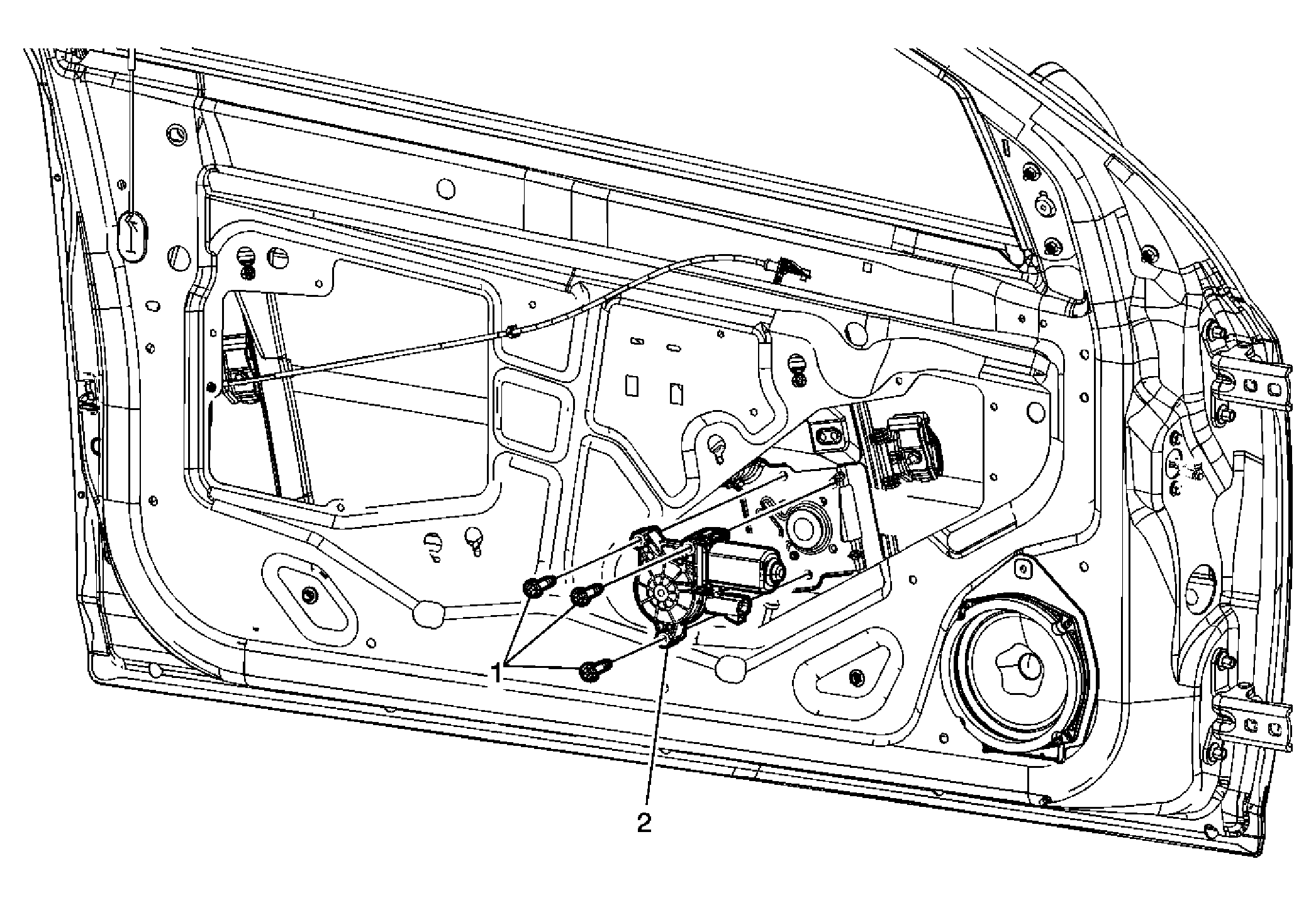

Fig 1: Window Regulator Motor Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Move the window to the full up position and secure in place with tape.
1	Front Side Door Window Regulator Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure: Disconnect the electrical connector. Tighten: 10 N.m (89 lb in)
2	Front Side Door Window Regulator Motor Procedure: Inspect the window for proper operation before installing the door trim panel.

Callout

Component Name

Preliminary Procedures

Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Move the window to the full up position and secure in place with tape.

Front Side Door Window Regulator Motor Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the electrical connector.

Tighten: 10 N.m (89 lb in)

Front Side Door Window Regulator Motor
Procedure:
Inspect the window for proper operation before installing the door trim panel.
