Side Window Air Outlet Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

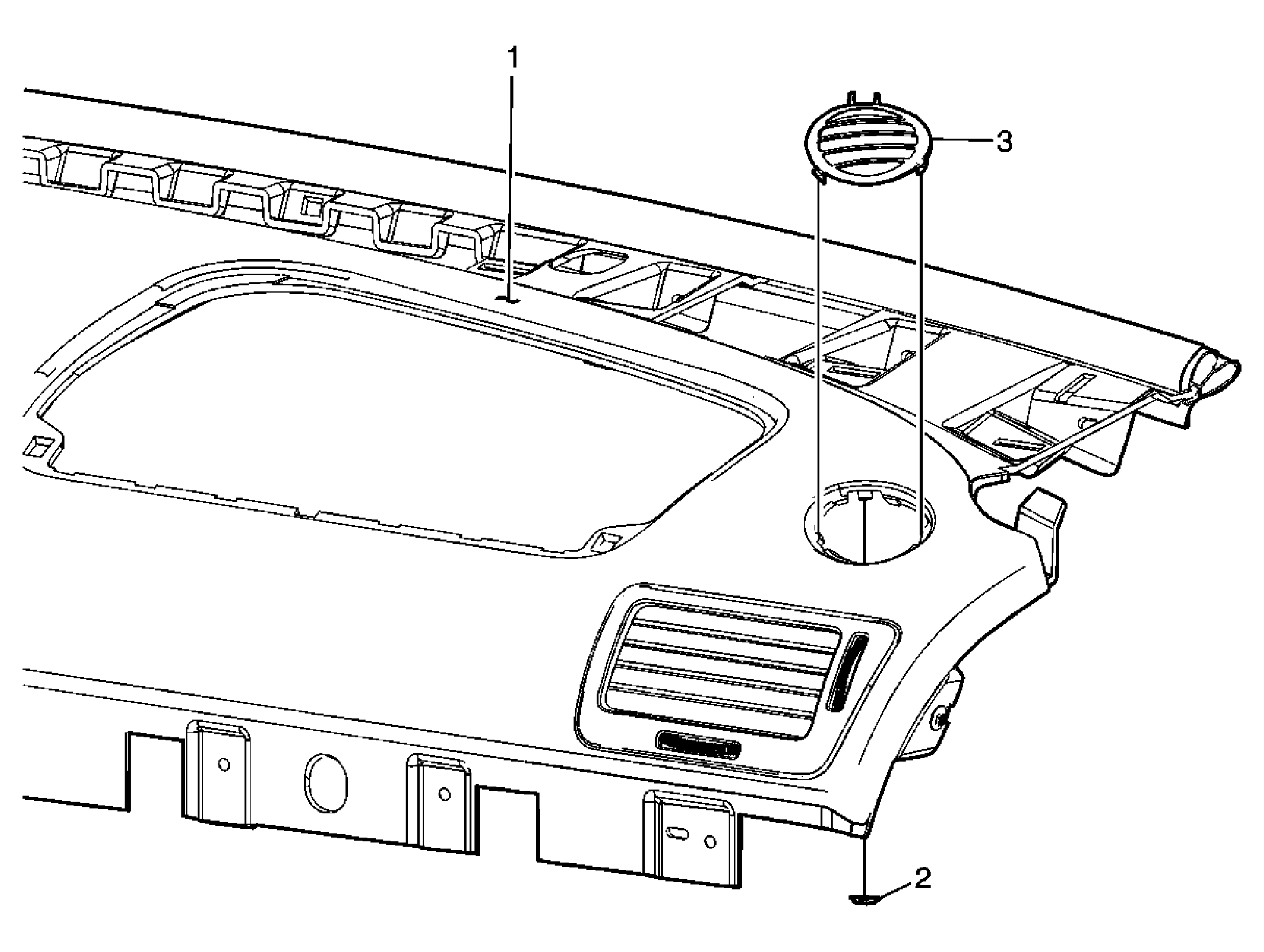

Fig 1: Side Window Air Outlet
GM1877890Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Upper Trim Panel
Refer to Instrument Panel Upper Trim Panel Replacement .
2 Side Window Defroster Grille Nut
Procedure:
Tighten the speed nut until fully driven, but not stripped.
3 Side Window Defroster Grille

Procedure

  1. Squeeze the tabs in order to release the defroster grill from the instrument panel upper trim panel.
  2. Rotate the grille assembly, and remove from the instrument panel upper trim panel.
