Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

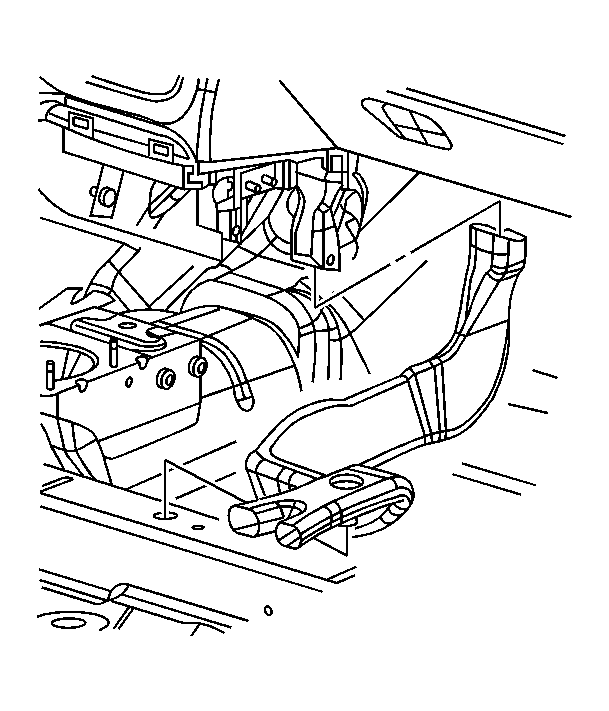

    Fig 1: View Of Floor Duct
    GM873733Courtesy of GENERAL MOTORS CORP.
  1. Align the floor duct with the center floor outlet duct.
  2. Align the floor duct with the floor support beam and snap into place.
  3. Reposition the carpet.
  4. Install the front floor console. Refer to Front Floor Console Replacement .
  5. Install the carpet retainer.
  6. Install the front seat. Refer to Front Seat Replacement - Bucket .
