Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the front carpet retainer.
  3. Pull the carpet up to access the floor duct.

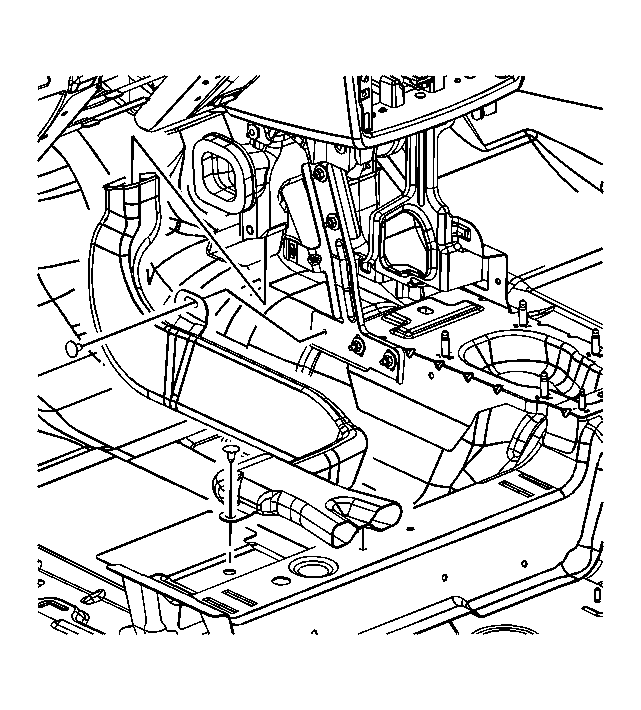

    4. Fig 1: View Of Left Floor Outlet Duct
    GM1609046Courtesy of GENERAL MOTORS CORP.
  4. Unsnap the floor duct from the floor support beam. Disengage the floor duct from the center floor outlet duct and remove from the vehicle.
