Seat Belt Retractor Pretensioner Replacement - Front (Sedan)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

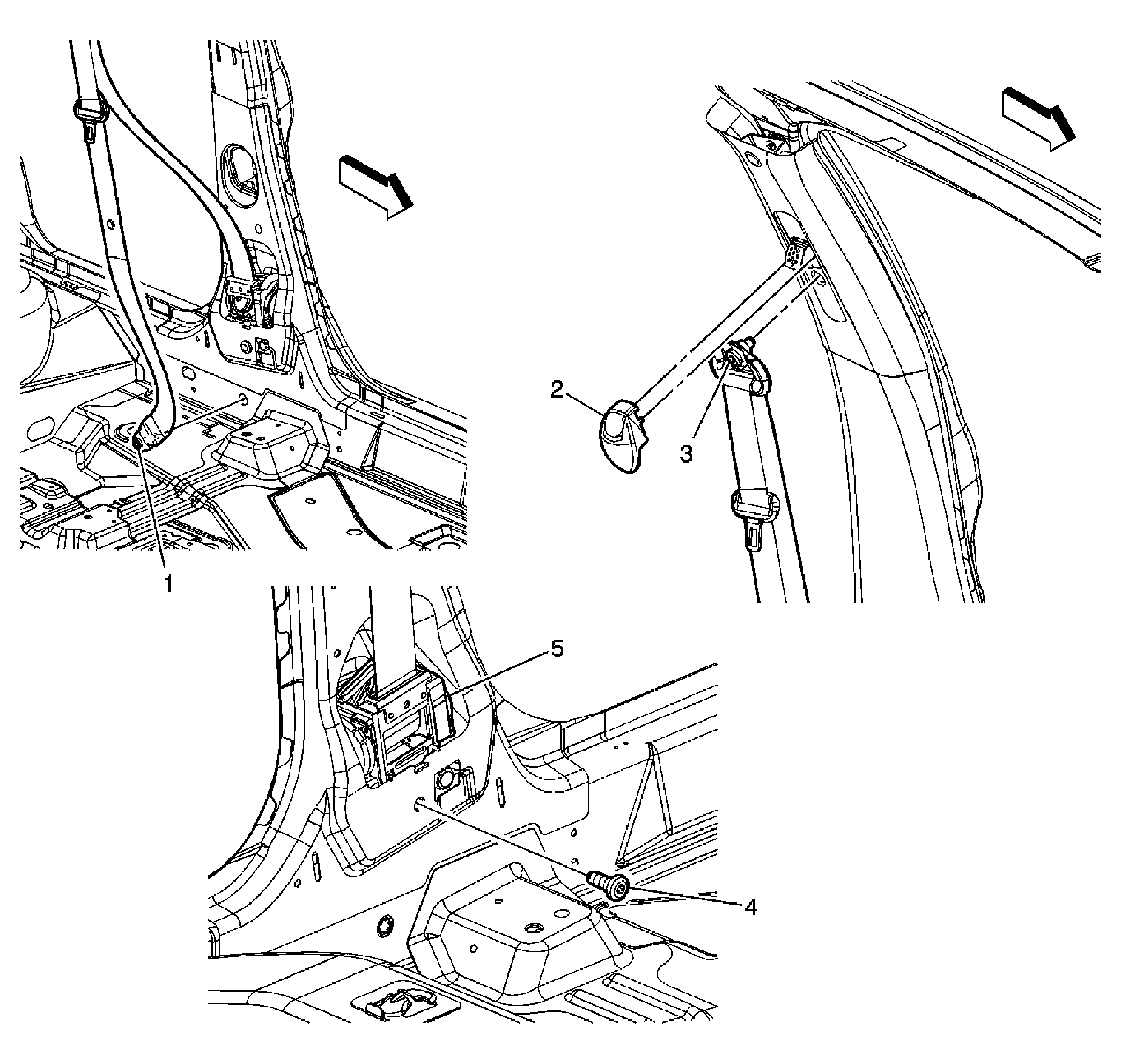

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disable the SIR in Zones 2 or 6. Refer to SIR Disabling and Enabling . |
|
| 1 | Seat Belt Anchor Bolt
CAUTION:
Refer to Fastener Caution
. Tip: Move the seat to the full forward position to gain access to the bolt. Tighten: 45 N.m (33 lb ft) |
| 2 | Seat Belt Adjuster Cover |
| 3 | Seat Belt Adjuster Bolt Tighten: 45 N.m (33 lb ft) |
| 4 | Seat Belt Retractor Bolt Tip: Remove the center pillar lower trim panel to gain access to the bolt. Refer to Center Pillar Lower Garnish Molding Replacement (Sedan) . Tighten: 45 N.m (33 lb ft) |
| 5 | Front Seat Belt Retractor Assembly Tip: Disconnect the belt tension sensor electrical connector. |
