Inflatable Restraint Passenger Seat Suppression Module Replacement (UD0)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

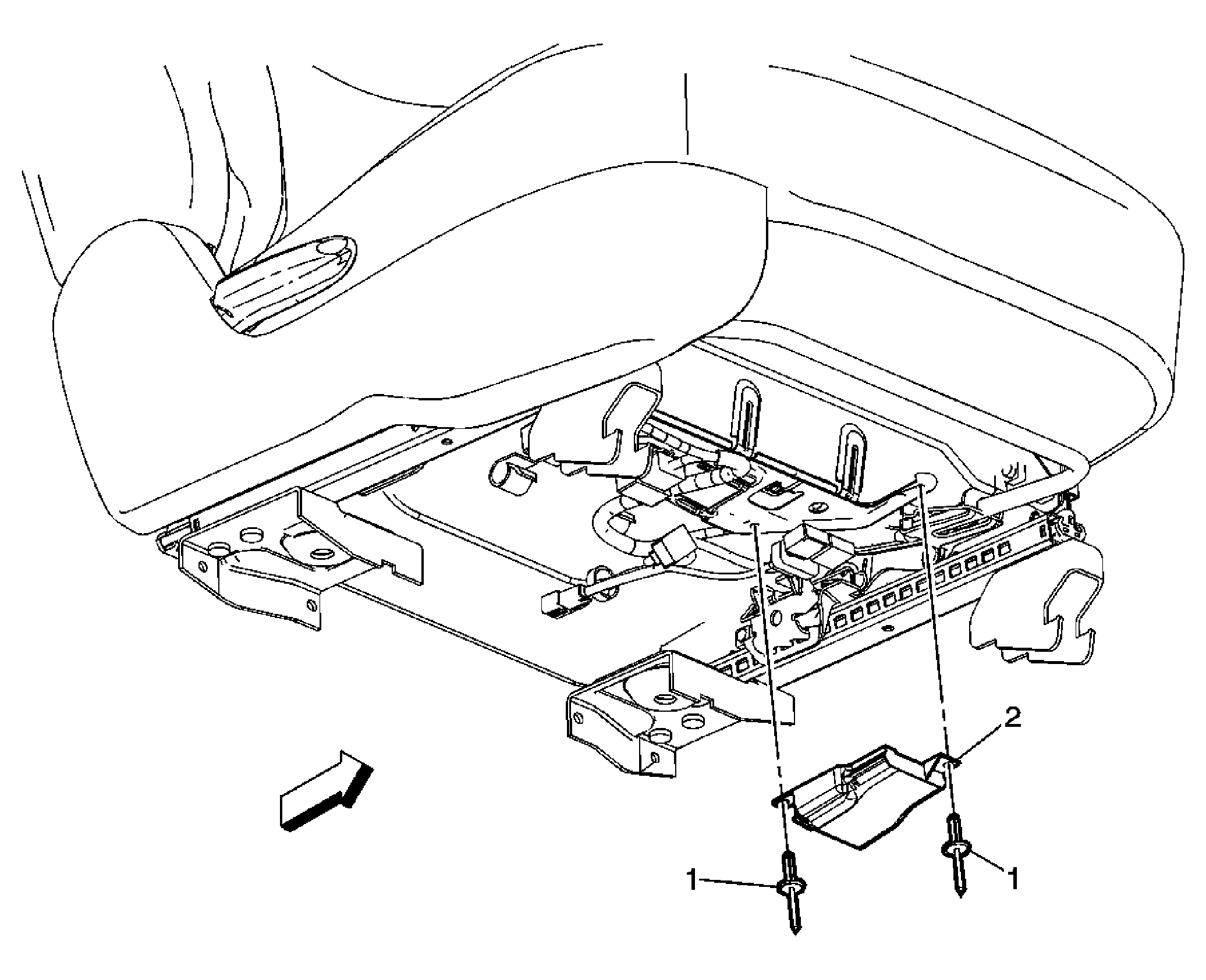

Fig 1: Inflatable Restraint Passenger Seat Suppression Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. Refer to. SIR Disabling and Enabling Remove the passenger seat. Refer to Front Seat Replacement - Bucket
1	Inflatable Restraint Passenger Presence Module Rivet (Qty: 2) WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Procedure: Drill out both guide rivets before removing.
2	Inflatable Restraint Passenger Presence Module NOTE: This module is not a component of the passenger presence service kit, and can also be re-used. Procedure: Refer to Control Module References for replacement and setup information.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedure

Disable the SIR system. Refer to. SIR Disabling and Enabling
Remove the passenger seat. Refer to Front Seat Replacement - Bucket

Inflatable Restraint Passenger Presence Module Rivet (Qty: 2)

WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury.

Procedure:
Drill out both guide rivets before removing.

Inflatable Restraint Passenger Presence Module

NOTE: This module is not a component of the passenger presence service kit, and can also be re-used.

Procedure:
Refer to Control Module References for replacement and setup information.
