Turbocharger Pressure Power Indicator Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

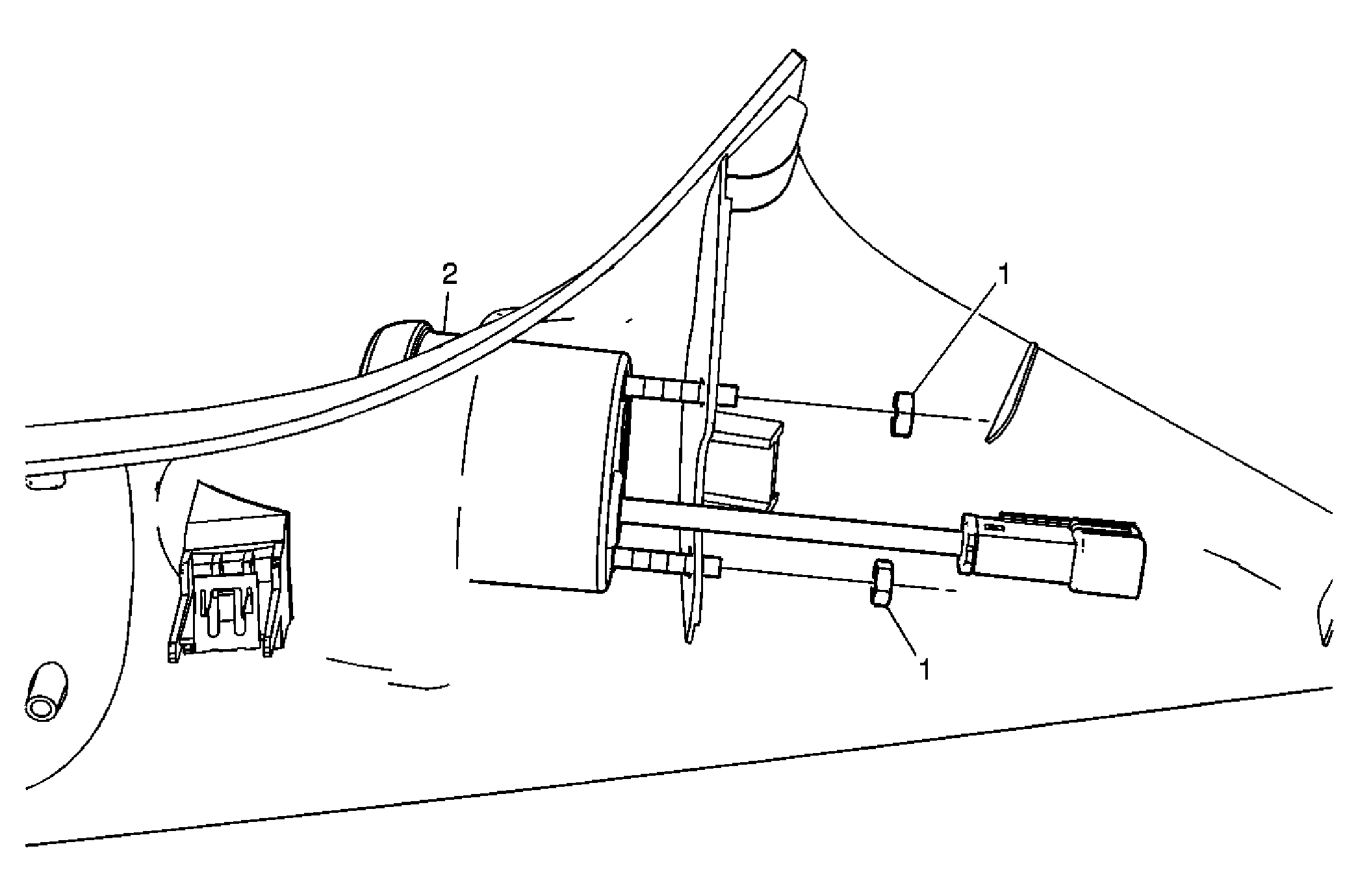

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the garnish molding. Refer to Windshield Garnish Molding Replacement . |
|
| 1 | Turbocharger Pressure Power Indicator Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 5 N.m (44 lb in) |
| 2 | Turbocharger Pressure Power Indicator Assembly Procedure: Disconnect the electrical connector. |
