Rear Split Folding Seat Back Cover, Pad, and Back Panel Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

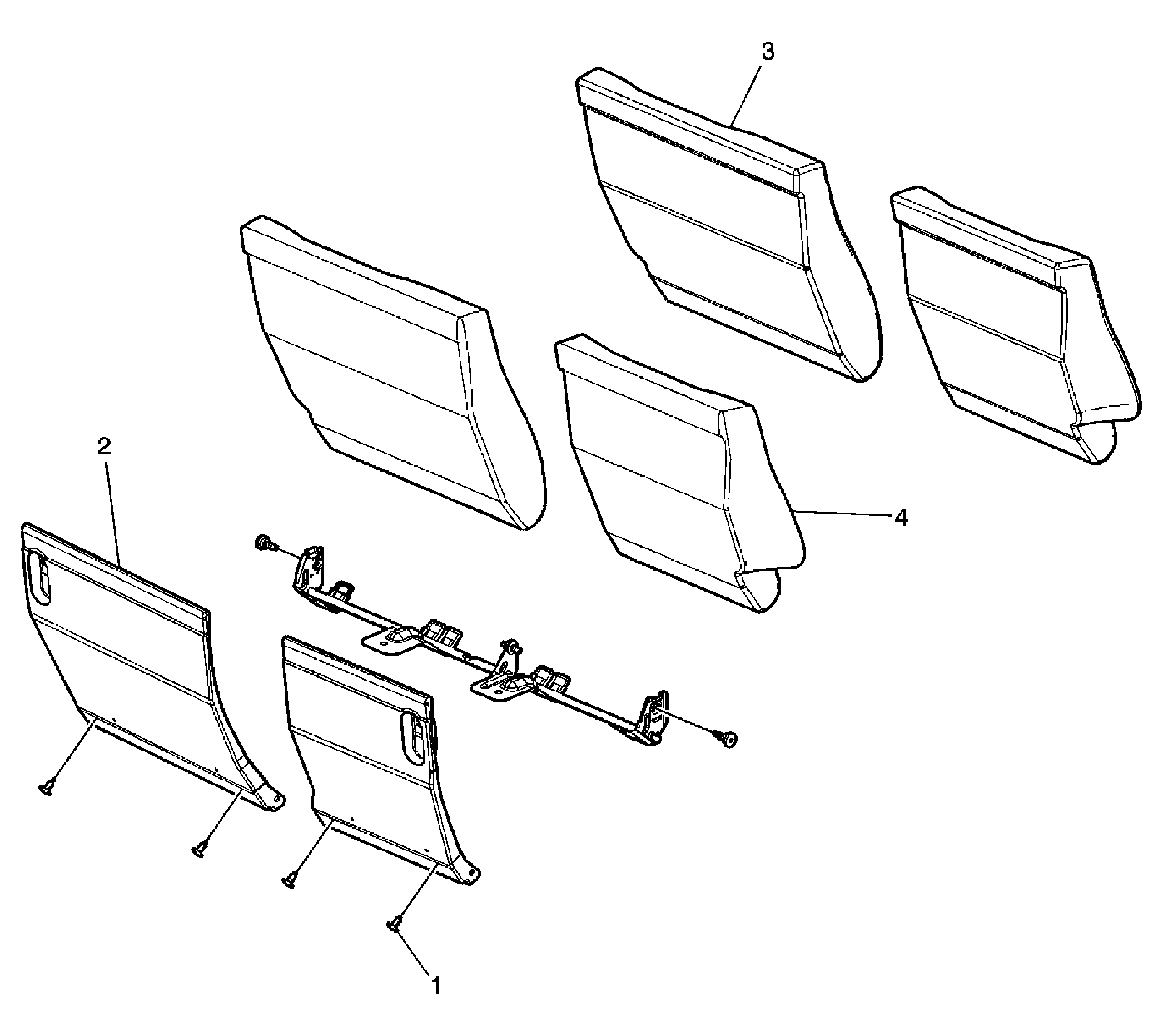

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the rear seat back. Refer to Rear Split Folding Seat Back Replacement . |
|
| 1 | Panel Rear Seat Back Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Rear Seat Back Panel |
| 3 | Rear Seat Cushion Cover Assembly |
| 4 | Rear Seat Cushion Pad Assembly |
