Rear Seat Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

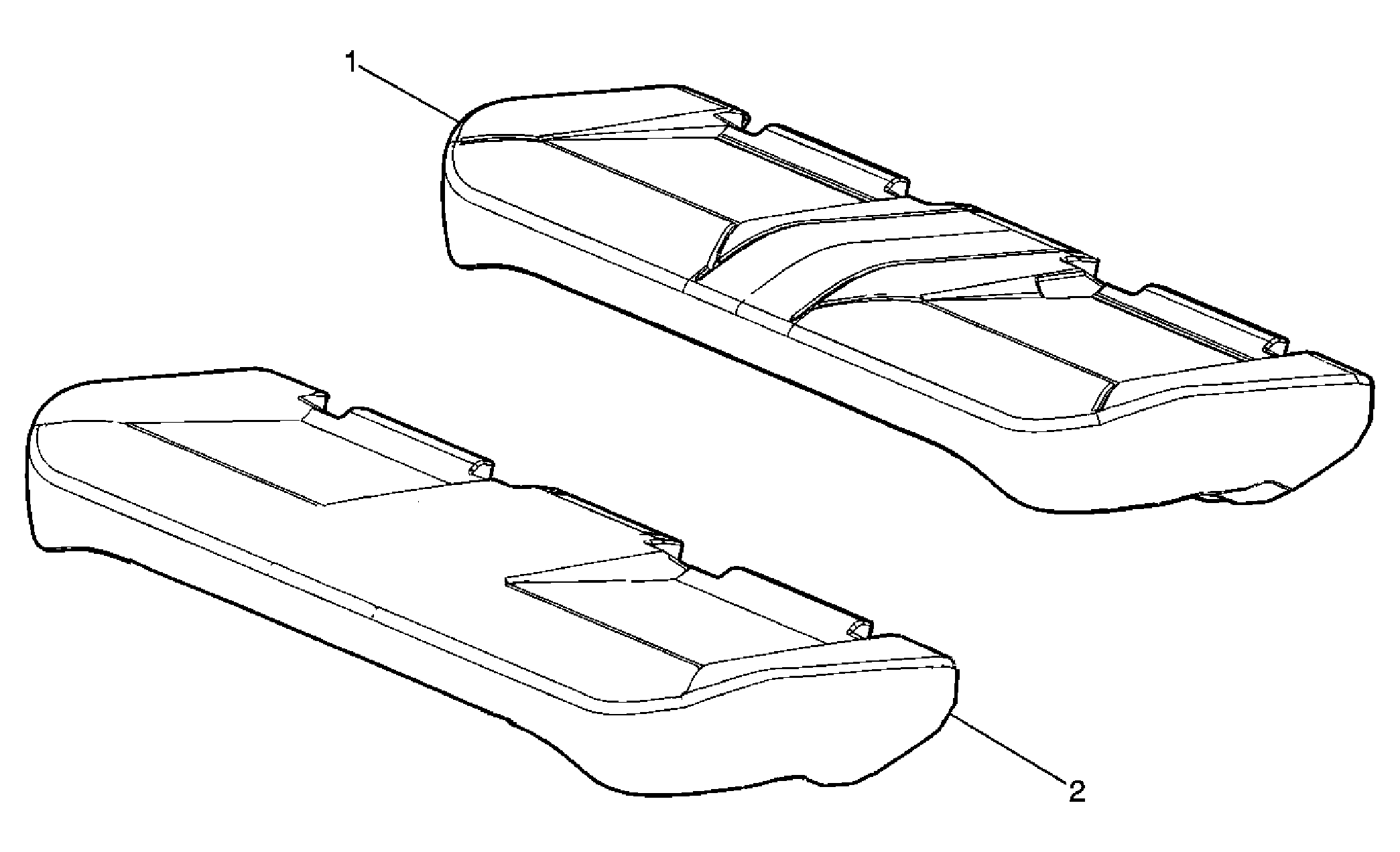

Fig 1: Rear Seat Cushion Cover & Pad
GM1538063Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedures:
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1 Cover Assembly, Rear Seat Cushion
2 Pad Assembly, Rear Seat Cushion
