Armrest Bracket Replacement (Sedan)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

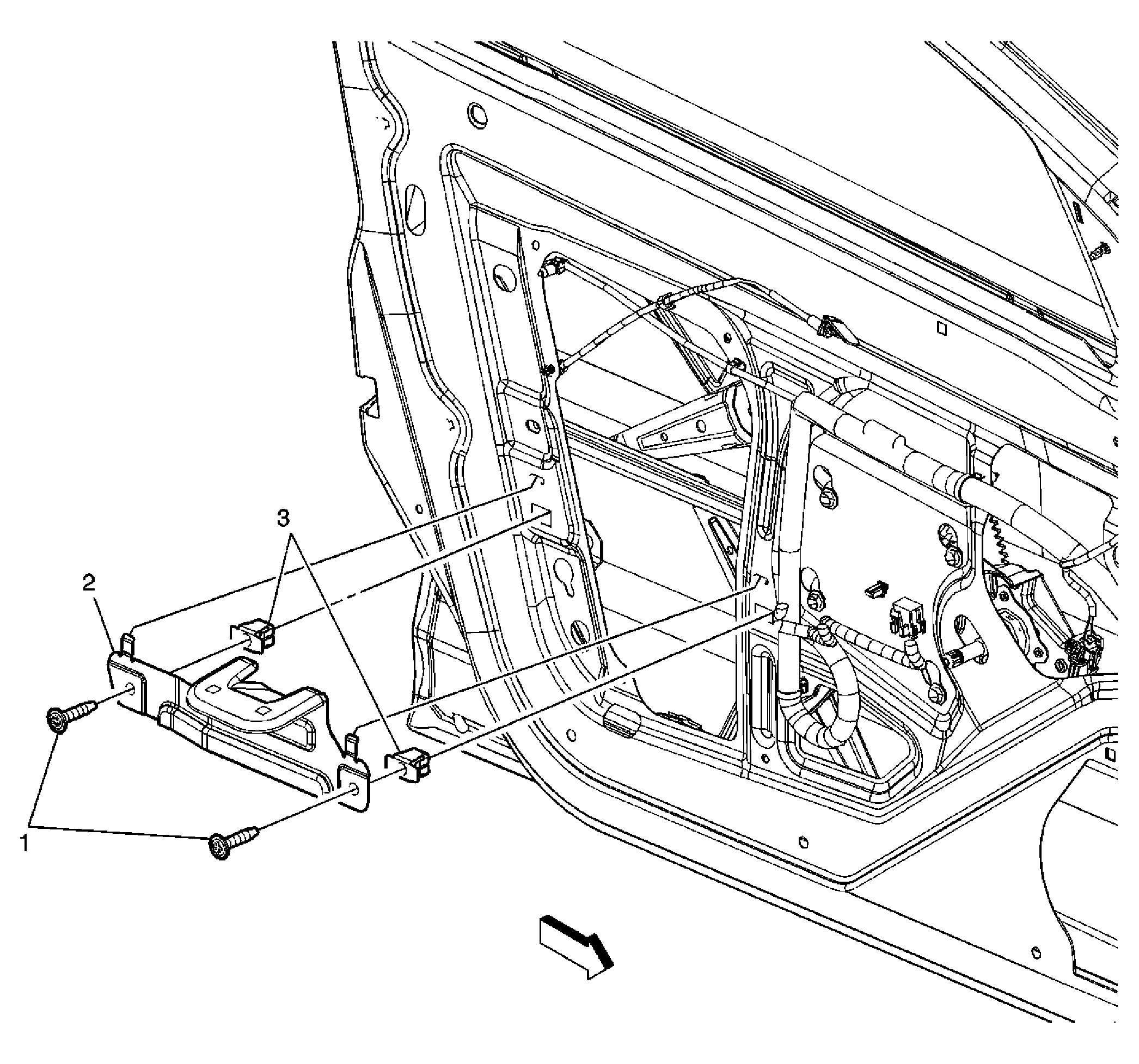

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the door panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Bracket Door Panel Armrest Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Door Panel Armrest Bracket |
| 3 | Door Panel Armrest Clip |
