Front Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

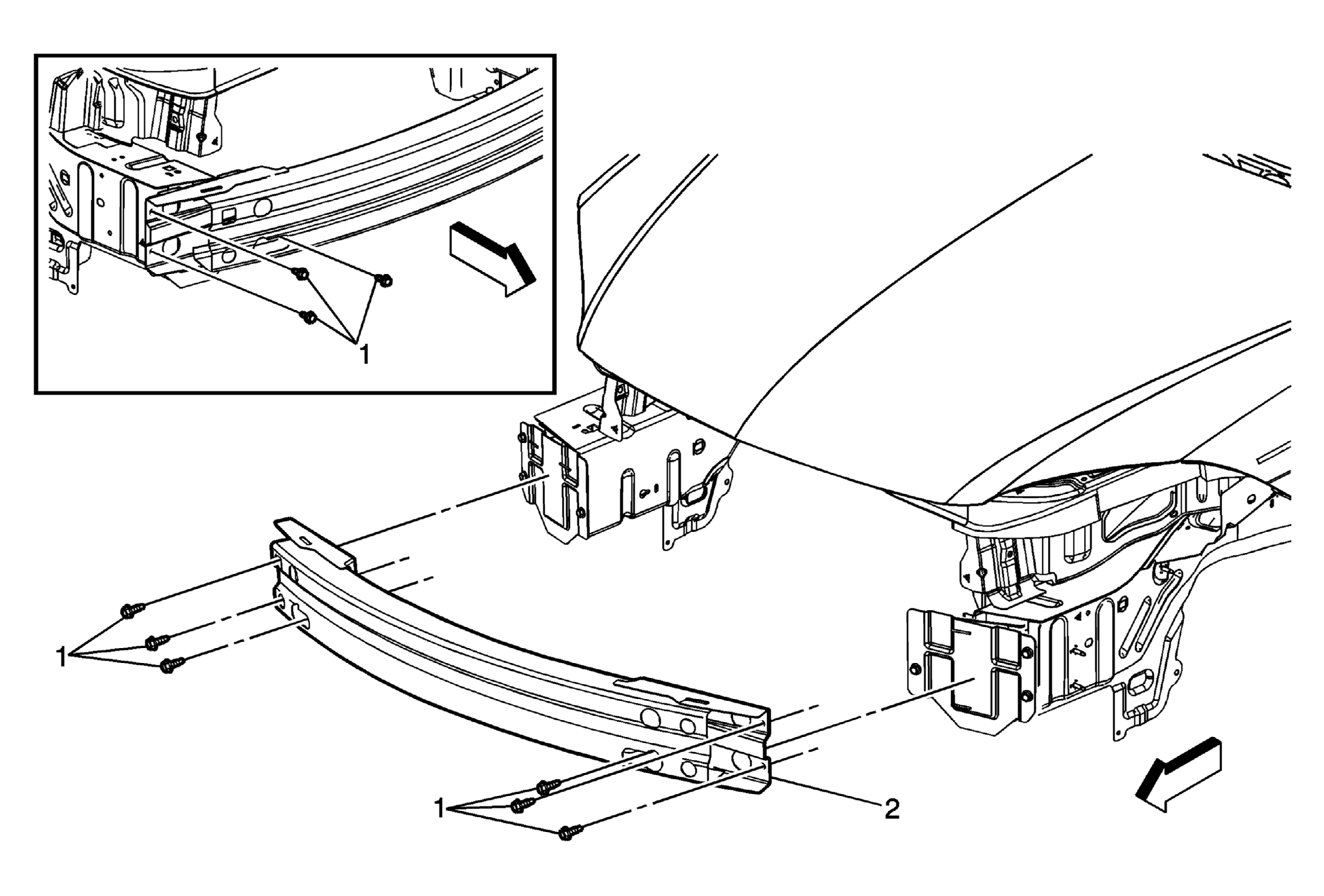

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Bumper Impact Bar Bolt (Qty: 6)
CAUTION:
Refer to Fastener Caution
. Tip: The energy absorber is attached to the fascia. Tighten: 30 N.m (22 lb ft) |
| 2 | Front Bumper Impact Bar |
