Front Bumper Fascia Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

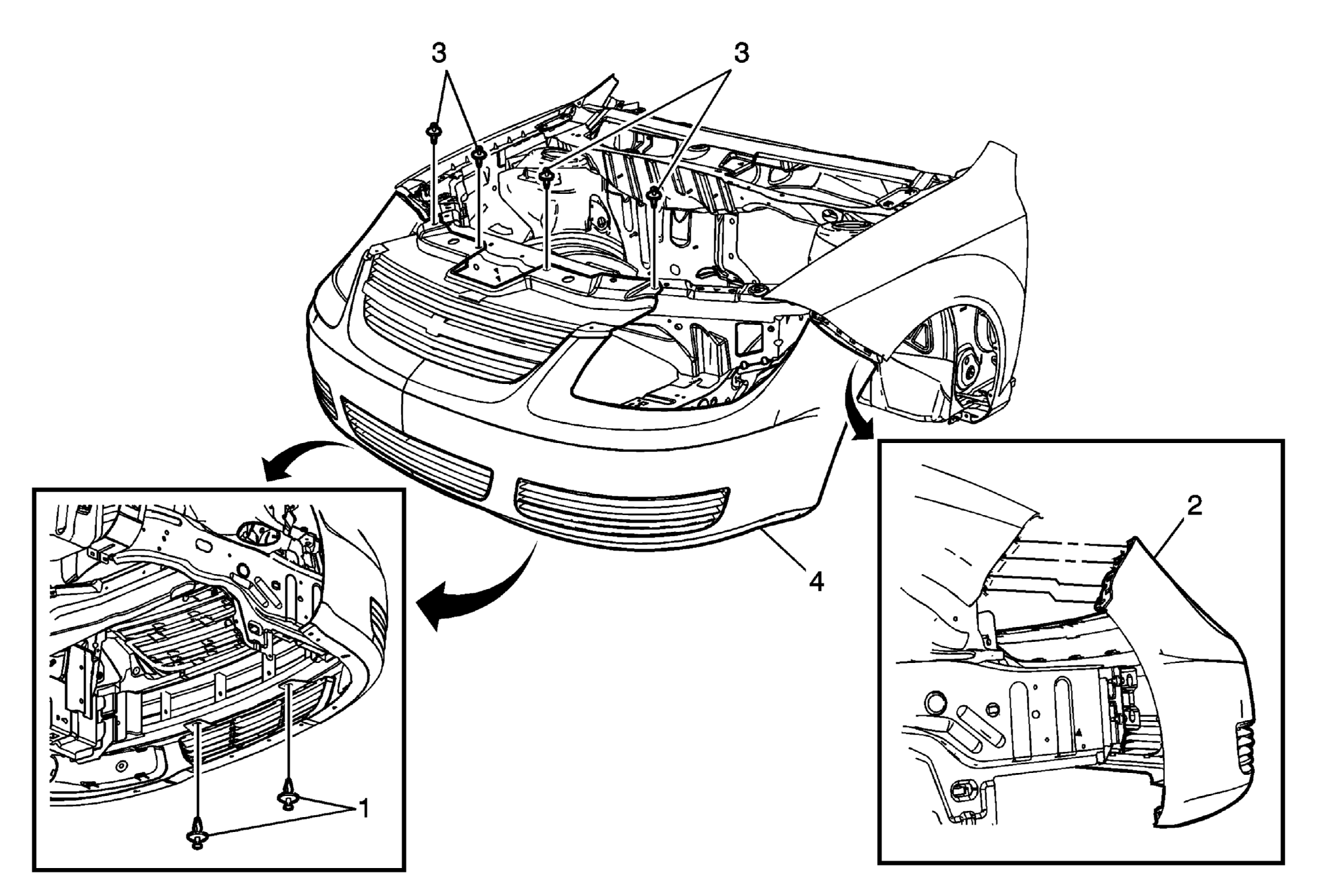

Fig 1: Identifying Front Bumper Fascia & Attachments

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlamp assemblies. Refer to Headlamp Replacement . Remove the front fender liners. Refer to Front Fender Liner Replacement . Remove the front bumper air deflector. Refer to Front Bumper Fascia Air Deflector Replacement . Remove the fog lamps, if equipped. Refer to Front Fog Lamp Replacement .
1	Lower Front Bumper Fascia Plastic Retainer (Qty: 2)
2	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
3	Upper Front Bumper Fascia Plastic Retainer (Qty: 4)
4	Front Bumper Fascia Procedure: Pull up on the front fascia to disconnect from the fender.
