Front Bumper Fascia Energy Absorber Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

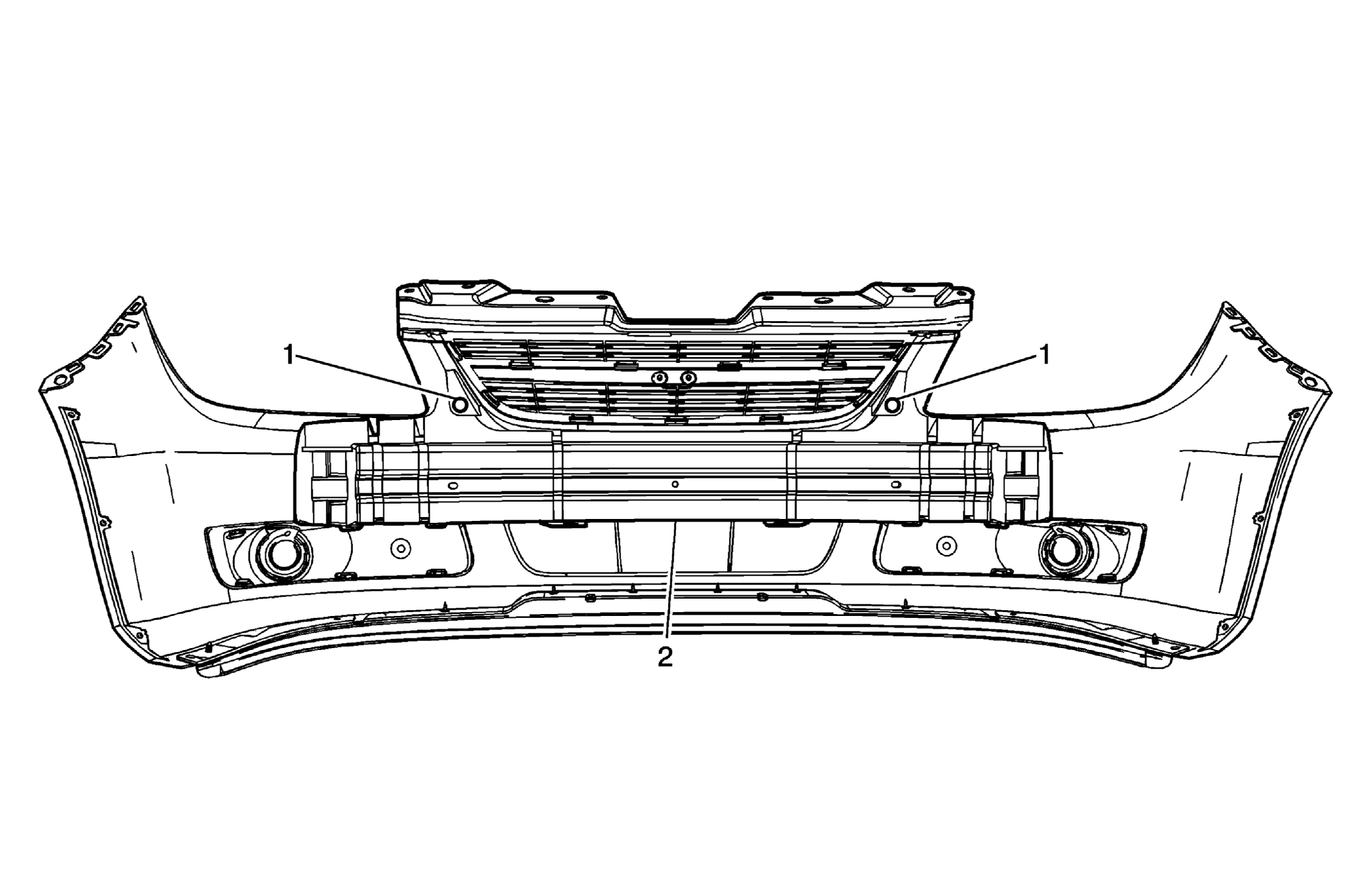

Fig 1: Locating Front Bumper Fascia Energy Absorber

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Energy Absorber Retainers (Qty: 2)
2	Front Energy Absorber Tip: The absorber is molded into a suitable shape to match the front impact bar and rest on it while the upper fascia grille is installed.
