Front Bumper Fascia Bracket Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

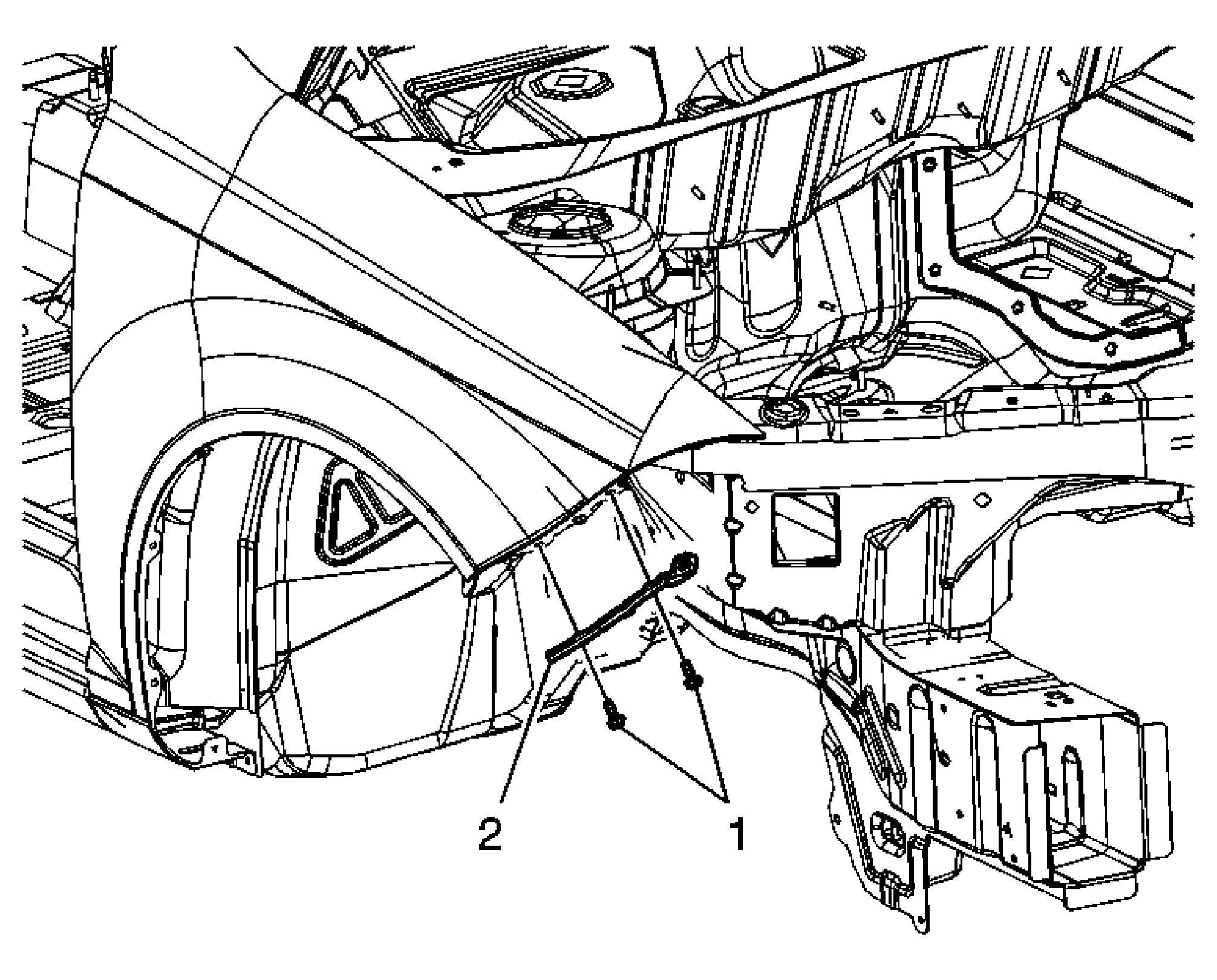

Fig 1: Identifying Front Bumper Impact Bar Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 7 N.m (62 lb in)
2	Front Bumper Fascia Bracket
