Turbocharger Coolant Feed Pipe Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

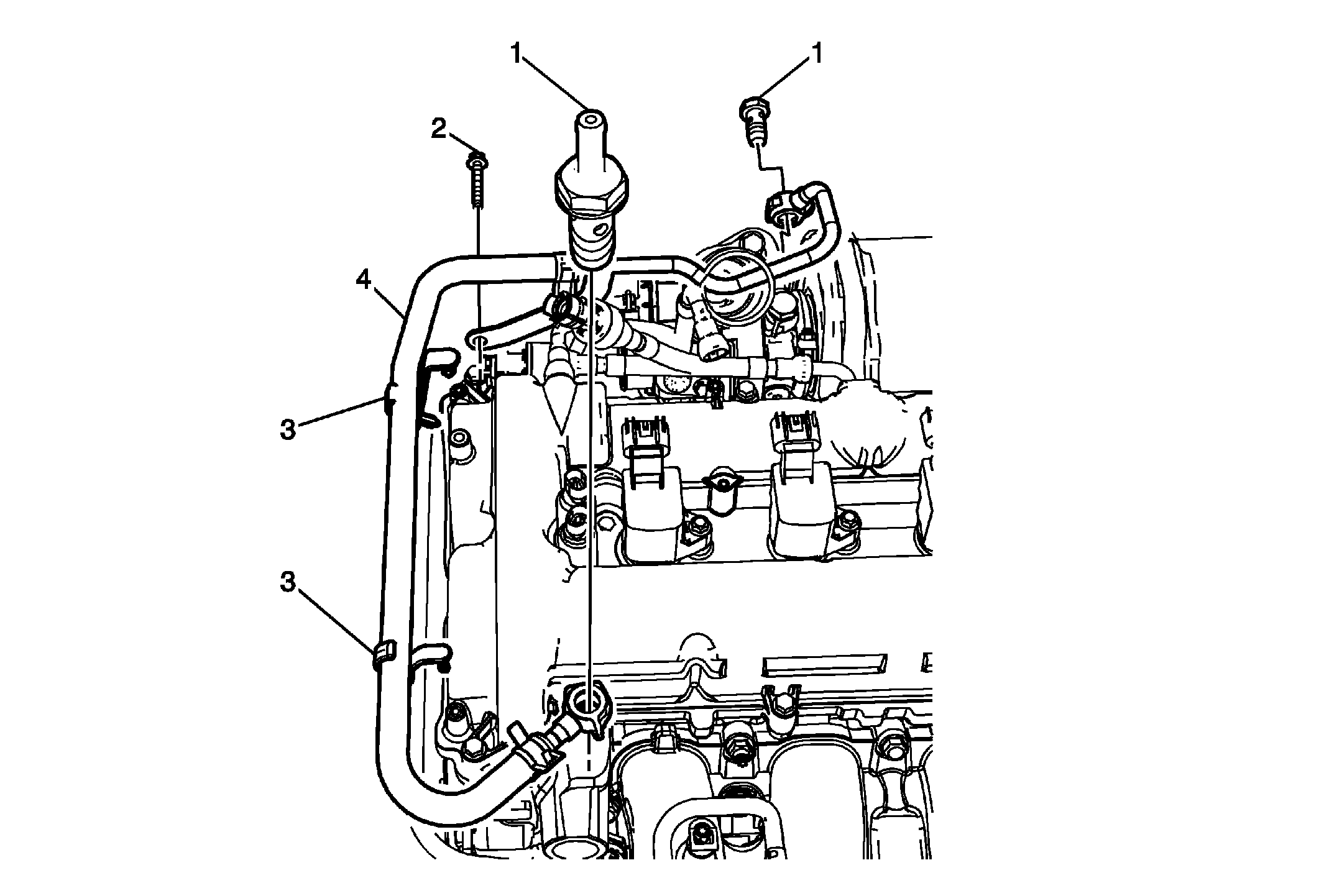

Fig 1: View Of Turbocharger Coolant Feed Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Remove the charged air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LE5, L61) or Cooling System Draining and Filling (Static Fill LNF) or Cooling System Draining and Filling (GE 47716 Fill) .
1	Turbo Coolant Feed Pipe Fitting (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure: Install new gaskets to both banjo bolt fittings. Tighten: 35 N.m (26 lb ft)
2	Coolant Feed Pipe Bracket Bolt Tighten: 10 N.m (89 lb in)
3	Turbo Cooler Feed Pipe Clip
4	Turbocharger Coolant Feed Pipe
