Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

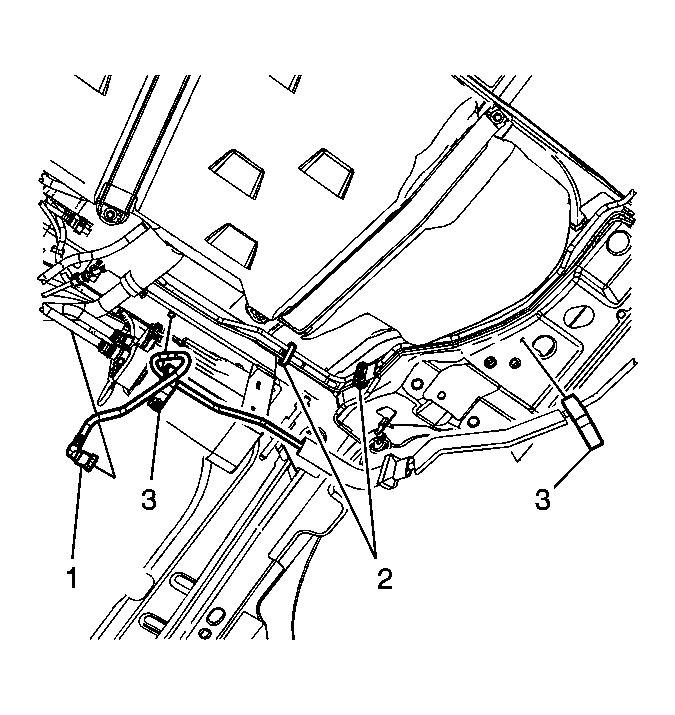

Fig 1: View Of EVAP Line & Retainers

Courtesy of GENERAL MOTORS CORP.

Install the EVAP line into the plastic retainers (3).
Connect the EVAP line to the plastic retainers (2).
Connect the quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service .

Fig 2: View Of Evaporative Emission Hoses/Pipes - Chassis/Canister

Courtesy of GENERAL MOTORS CORP.

Connect the EVAP line to the plastic retainers (2).

CAUTION: Refer to Fastener Caution .

Install the retaining nuts (1) and tighten to 10 N.m (89 lb in).
Remove the caps or plugs from the purge pipe and the engine purge hose.
Connect the purge pipe to the engine purge hose. Refer to Evaporative Emission Line Replacement - Engine to Chassis .
