Evaporative Emission Line Replacement - Engine to Chassis

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

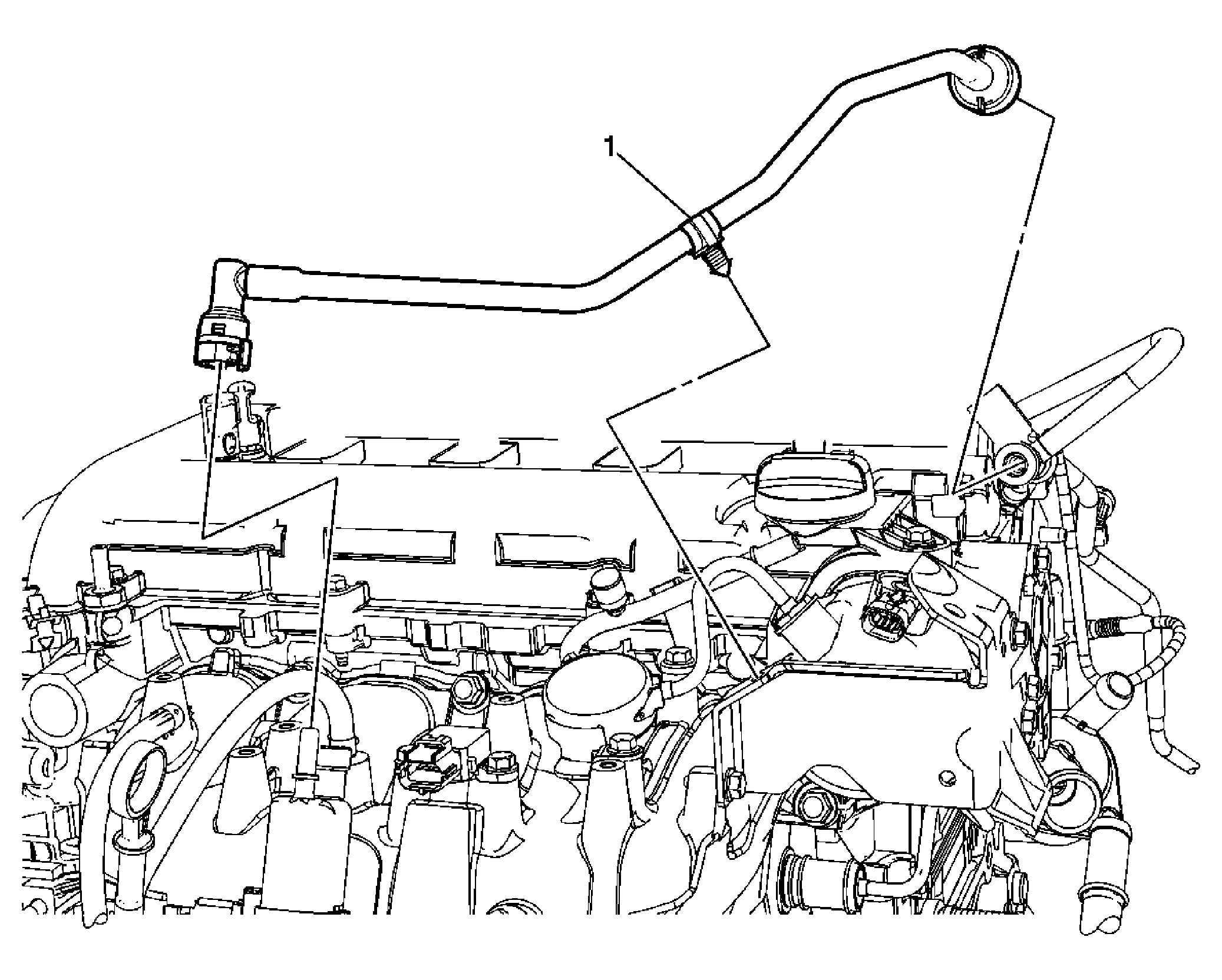

Fig 1: View Of Engine/Chassis Evaporative Emission Hoses/Pipes

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Relieve the fuel system pressure. Refer to Fuel Pressure Relief (With CH 48027) or Fuel Pressure Relief (Without CH 48027) or Fuel Pressure Relief (High Pressure Side) .
1	Evaporative Emission Hoses/Pipe - Engine/Chassis Procedure: Disconnect the plastic collar quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service .
