Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

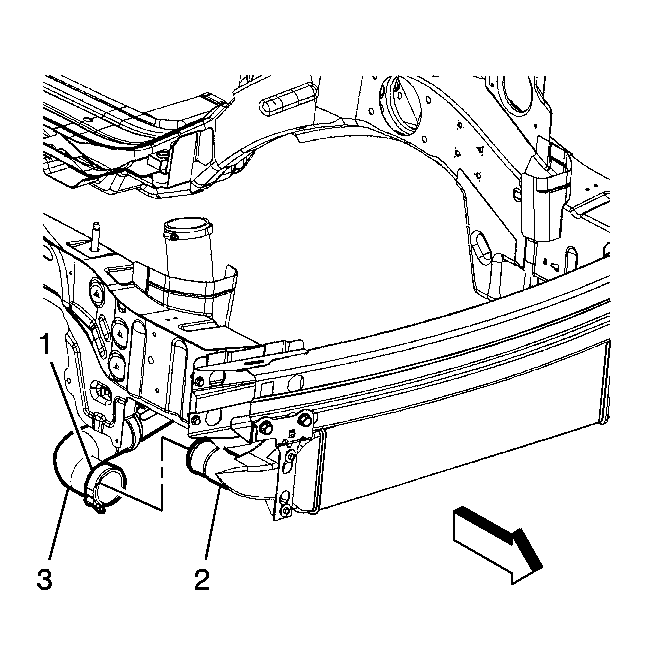

    Fig 1: View Of Charge Air Cooler Outlet Pipe Clamp & Charge Air Cooler Assembly
    GM2002697Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the charge air cooler outlet pipe (3) to the charge air cooler assembly (2) and tighten the clamp tp 5 N.m (44 lb in).
  2. Install the right engine splash shield. Refer to Engine Splash Shield Replacement - Right Side .

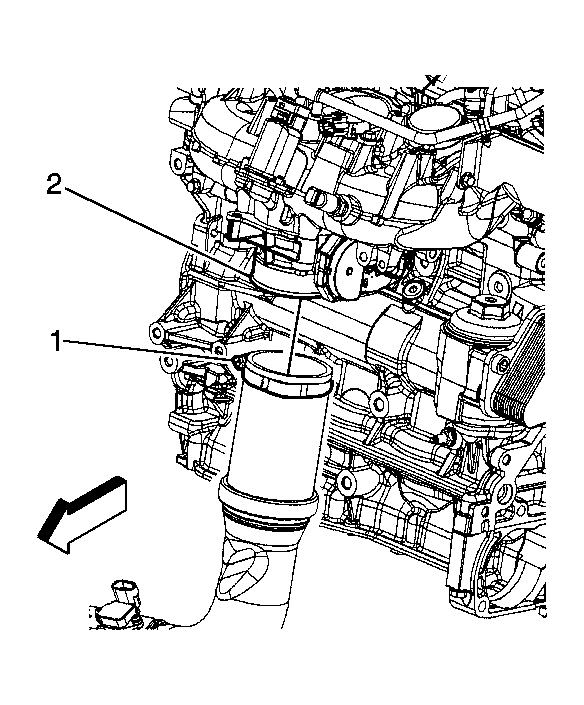

    3. Fig 2: View Of Charge Air Cooler Outlet Pipe
    GM2002696Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector to the intake air pressure and temperature sensor.
  4. Install the vacuum hose and reposition the hose clamp.
  5. Install the charge air cooler outlet pipe to the intake manifold (2) and tighten the charge air cooler outlet pipe clamp (1) to 5 N.m (44 lb in).
