Engine Splash Shield Replacement - Right Side
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

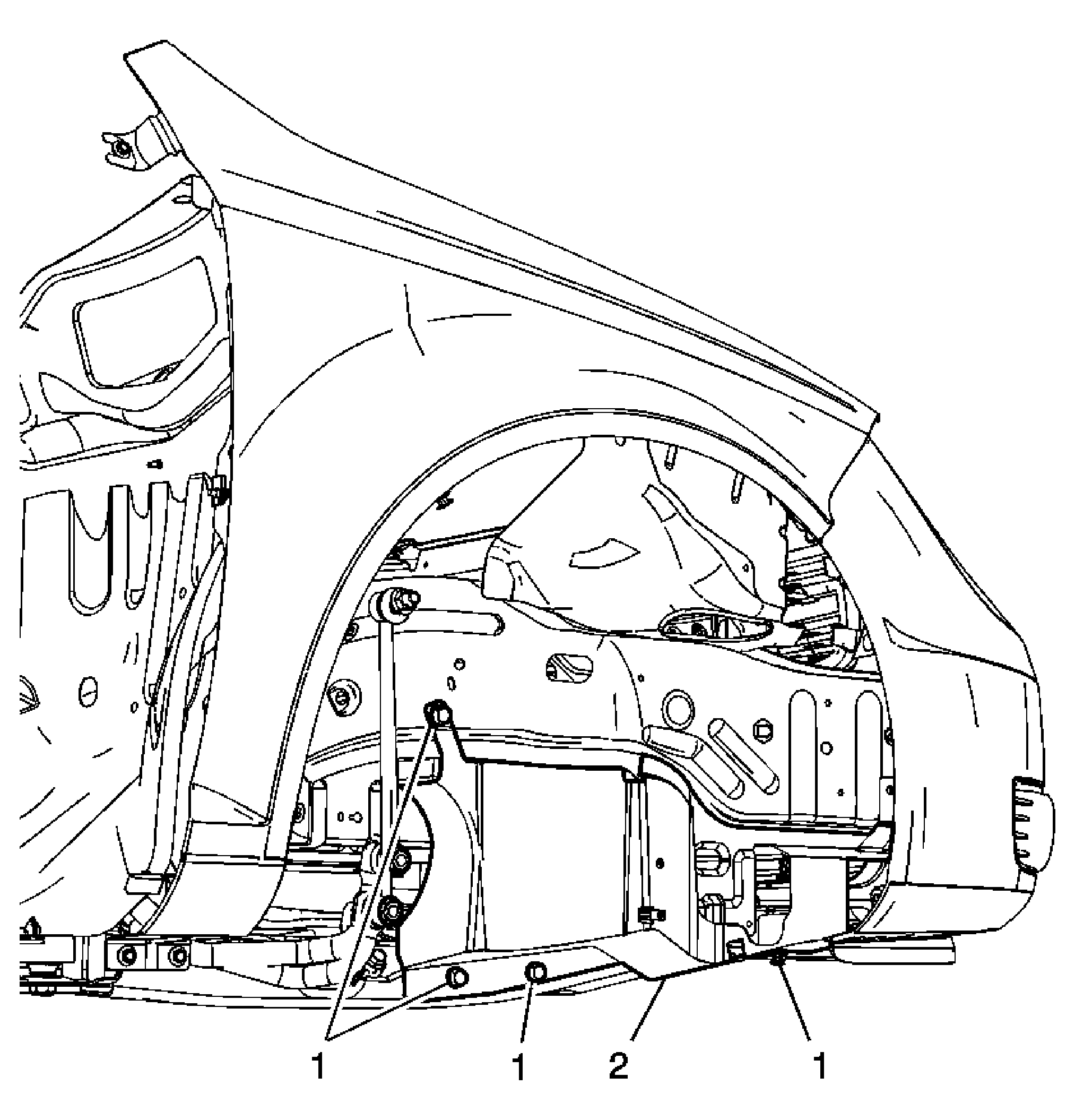

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front fender liner. Refer to Front Fender Liner Replacement . |
|
| 1 | Engine Splash Shield Retainer (Qty: 4) |
| 2 | Engine Splash Shield - Right |
