Instrument Cluster Replacement

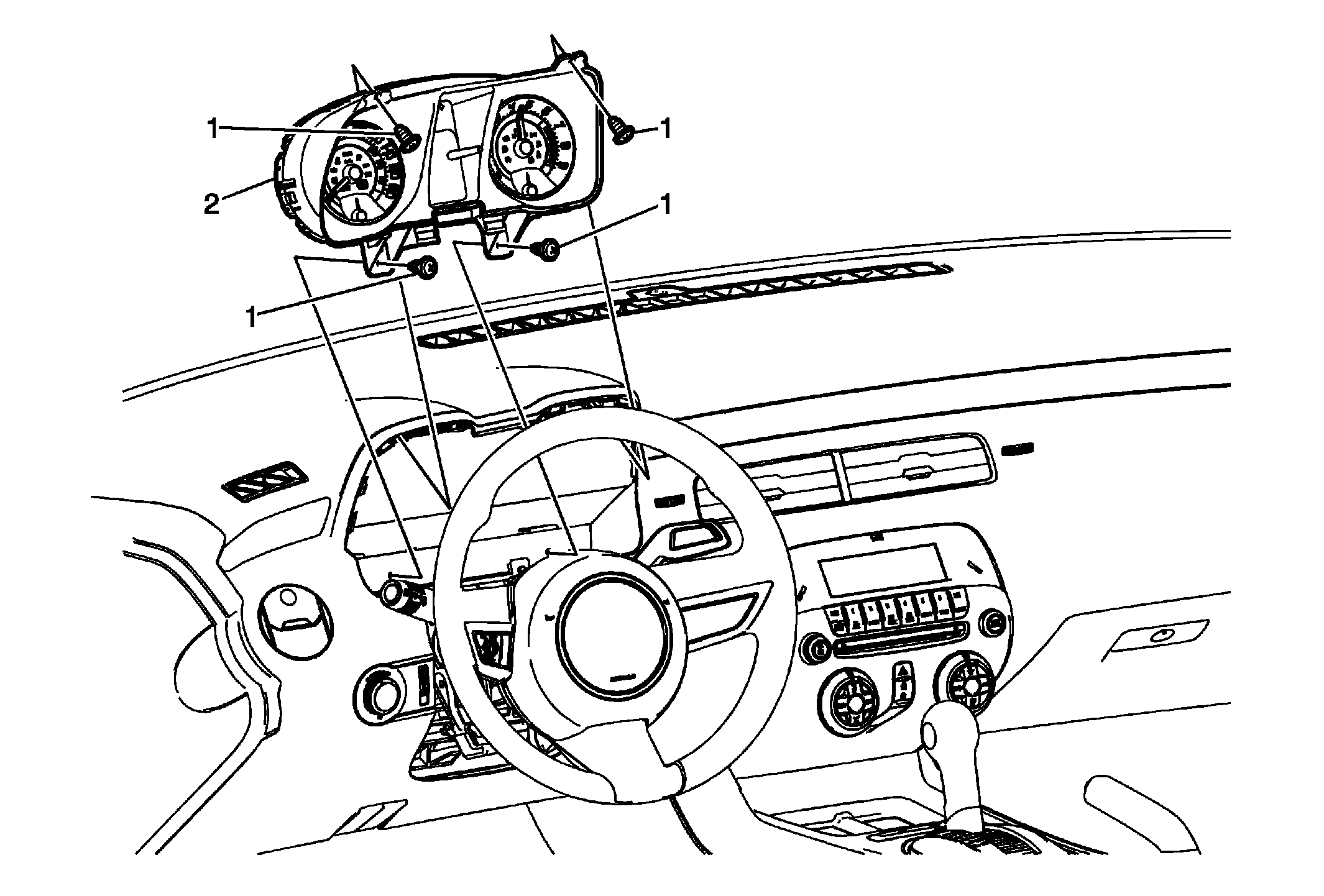

Fig 1: Instrument Panel Cluster And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .
1	Instrument Panel Cluster Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .

Instrument Panel Cluster Fasteners (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Cluster Assembly

Procedure
