Instrument Panel Cluster Trim Plate Replacement

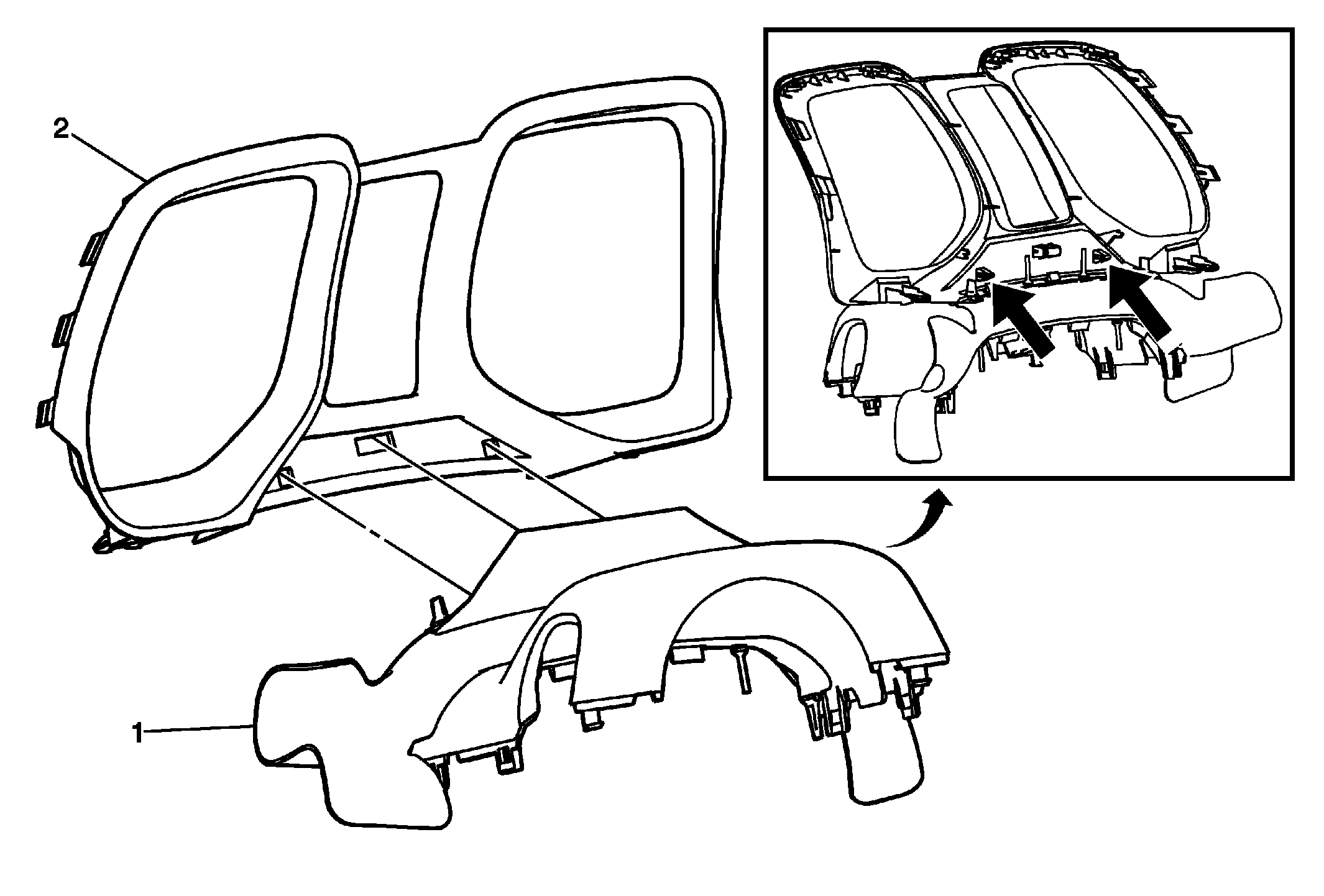

Fig 1: Instrument Panel Cluster Trim Plate And Upper Steering Column Shroud

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Upper Steering Column Shroud Refer to Steering Column Shroud Replacement .
2	Instrument Panel Cluster Trim Plate Assembly Procedure Squeeze the tabs on the back of the upper steering column shroud in order to release the instrument panel cluster plate from the shroud.
