Driver or Passenger Seat Head Restraint Guide Replacement
Driver or Passenger Seat Head Restraint Guide Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement . |
|

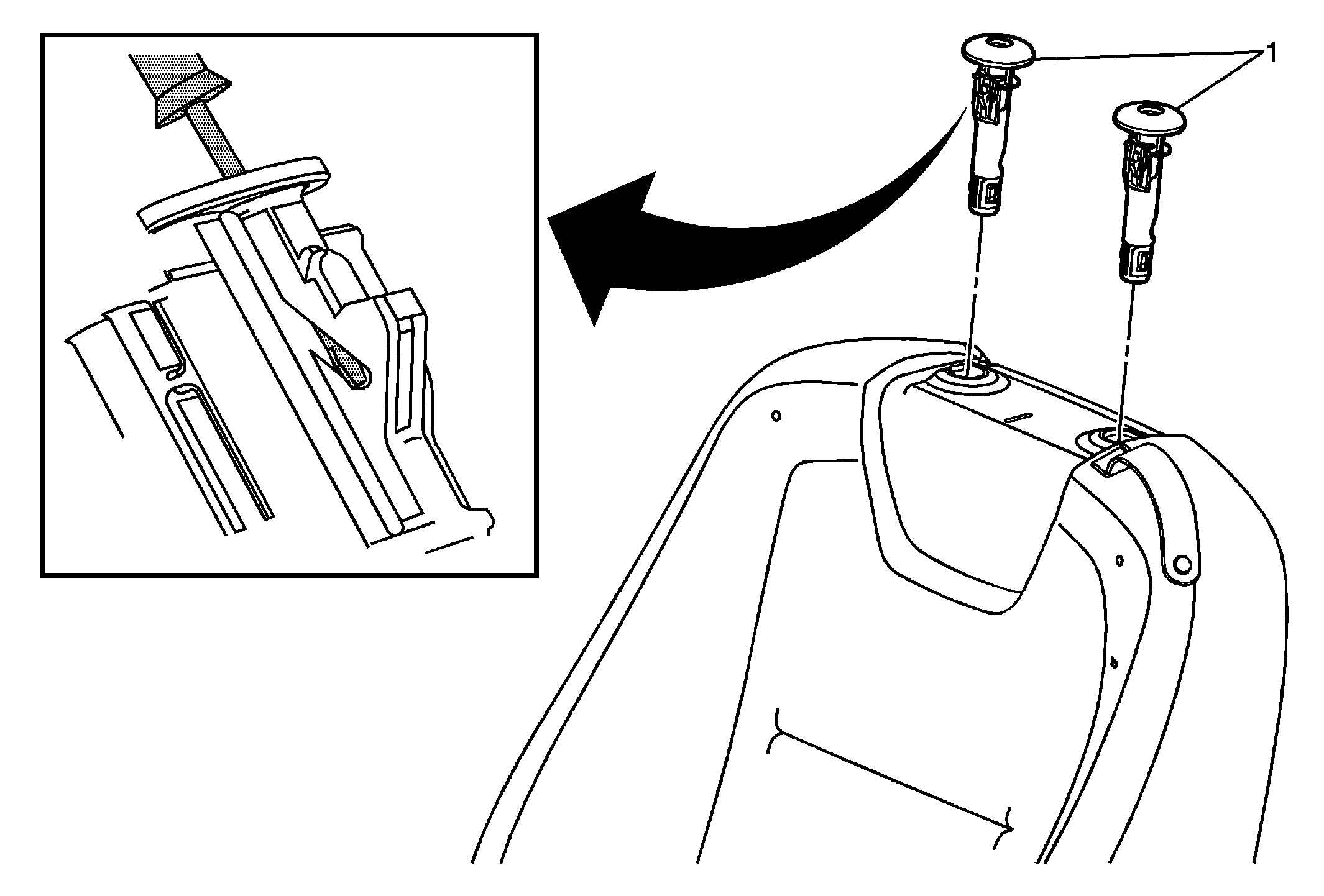

| 1 | Front Seat Head Restraint Guide (Qty: 2) Procedure Using a suitable flat-bladed tool, slide the tool on the inside of the guide until it finds the slot. Then push the tool forward pulling the guide tab inward, while pulling upward to remove the guide from the seat back frame. |
