Driver or Passenger Seat Adjuster Vertical Actuator Handle Replacement

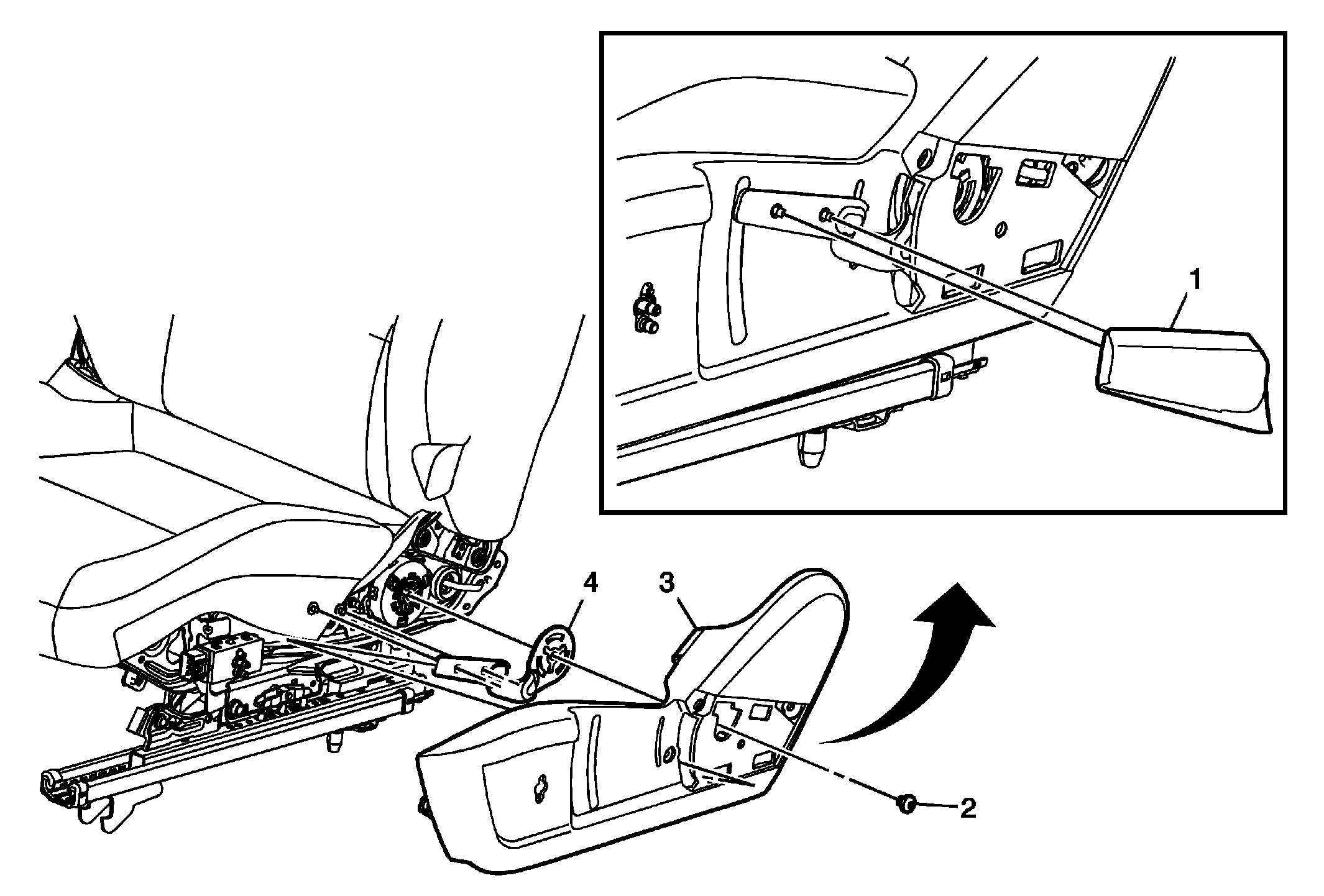

Fig 1: Front Seat Adjuster Vertical Actuator Handle And Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat outer adjuster front finish cover. Refer to Driver or Passenger Seat Outer Adjuster Front Finish Cover Replacement .
1	Driver Seat Adjuster Vertical Actuator Handle Cover Procedure Use a flat-bladed tool to release the handle cover from the vertical actuator handle.
2	Driver Seat Adjuster Vertical Actuator Handle Screw CAUTION: Refer to Component Fastener Tightening Caution Tighten 19 N.m (14 lb ft)
3	Driver or Passenger Seat Outer Adjuster Finish Cover Procedure Remove the driver or passenger seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (with Manual Height Adjuster) , Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (with Power Height Adjuster)
4	Driver Seat Adjuster Vertical Actuator Handle Procedure Note the location and routing of the handle prior to removal in order to ensure proper reinstallation.
