Sunshade Replacement (Convertible)
Sunshade Replacement (Convertible)

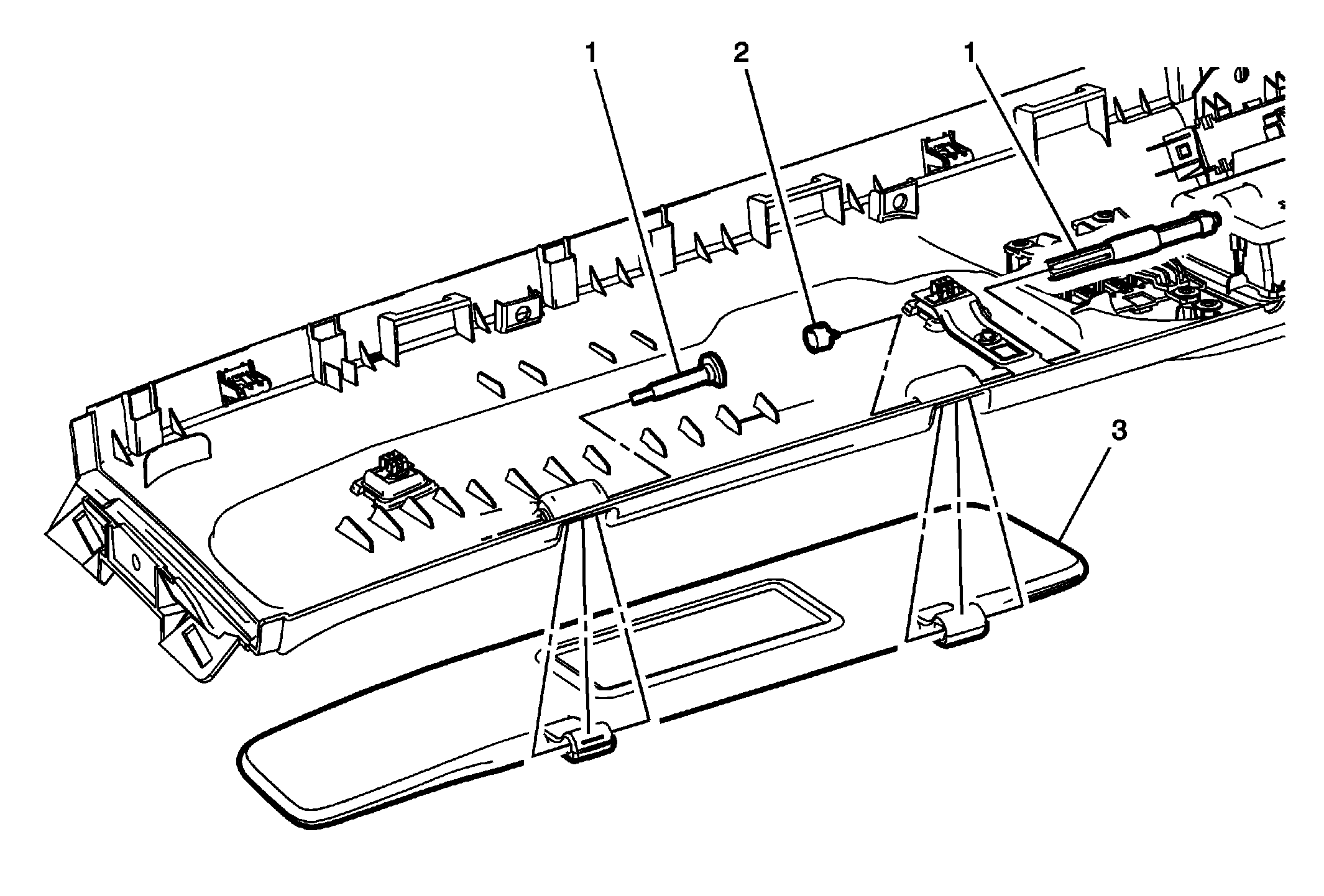

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof front header garnish molding lower. Refer to Roof Front Header Garnish Molding Replacement - Lower (Convertible) . |
|
| 1 | Sunshade Rod Retainer Shim (Qty: 2) Procedure Remove metal push nut on outer shim. |
| 2 | Sunshade Retainer |
| 3 | Sunshade Assembly |
