Roof Console Replacement

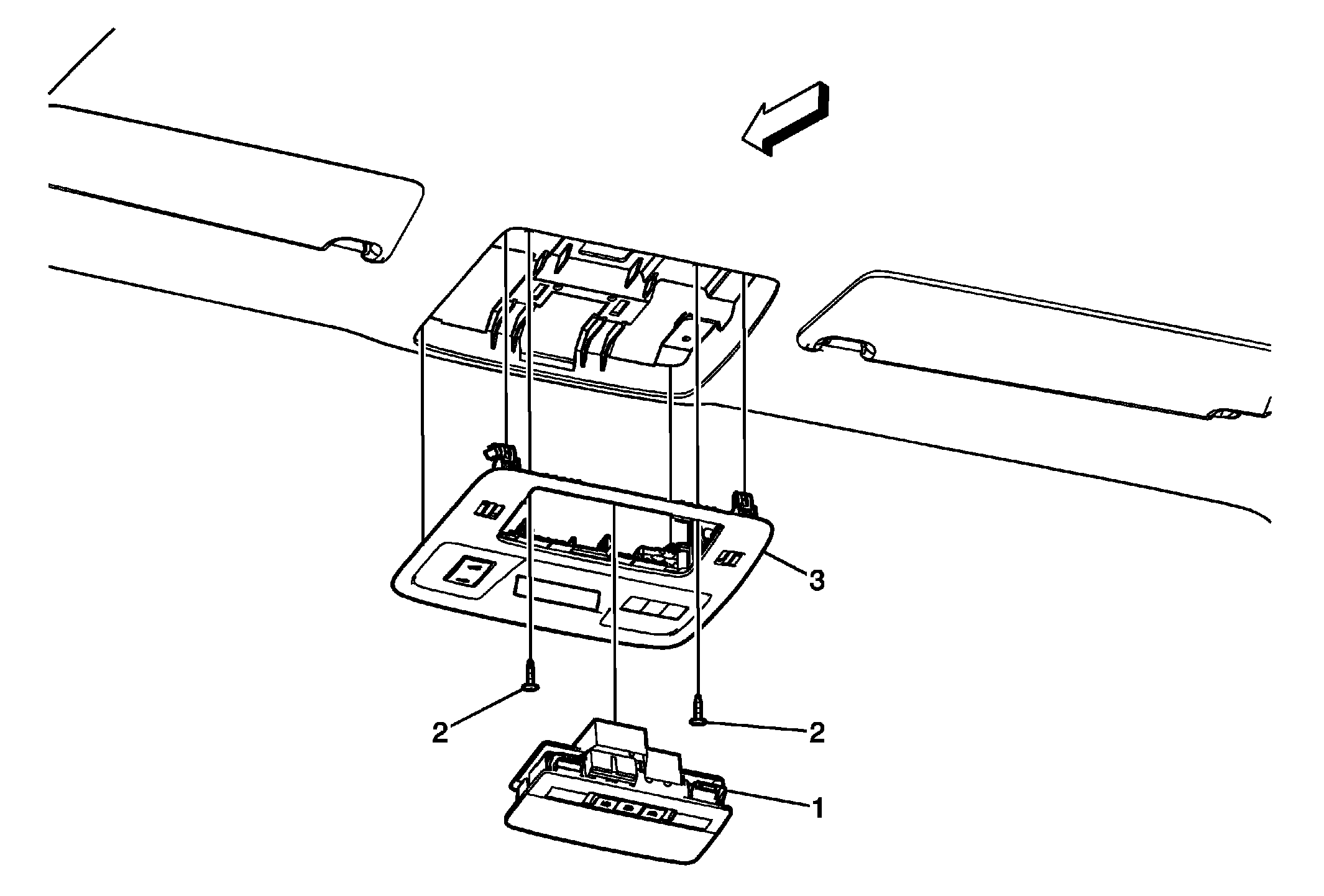

Fig 1: Roof Console, Fasteners And Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Courtesy Lamp Assembly Refer to Courtesy Lamp Replacement .
2	Roof Console Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Roof Console Assembly Procedure Grasp the right and left sides of the roof console assembly and pull downward using equal force on each side in order to release the four retainer clips securing the roof console assembly to the headlining assembly. Disconnect the electrical connections. When replacing the roof console assembly, transfer all necessary components.

Callout

Component Name

Courtesy Lamp Assembly
Refer to Courtesy Lamp Replacement .

Roof Console Fasteners (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Roof Console Assembly

Procedure

Grasp the right and left sides of the roof console assembly and pull downward using equal force on each side in order to release the four retainer clips securing the roof console assembly to the headlining assembly.
Disconnect the electrical connections.
When replacing the roof console assembly, transfer all necessary components.
